Remove/install charger feed socket - AR54.10-P-5109MEX

MODEL 451.390/392/490/492 with ENGINE 780.993

MODIFICATION NOTES

5.3.14 Protective earth conductor test and insulation resistance test added Operation step 17

Without CODE 908 (22KW onboard charger)

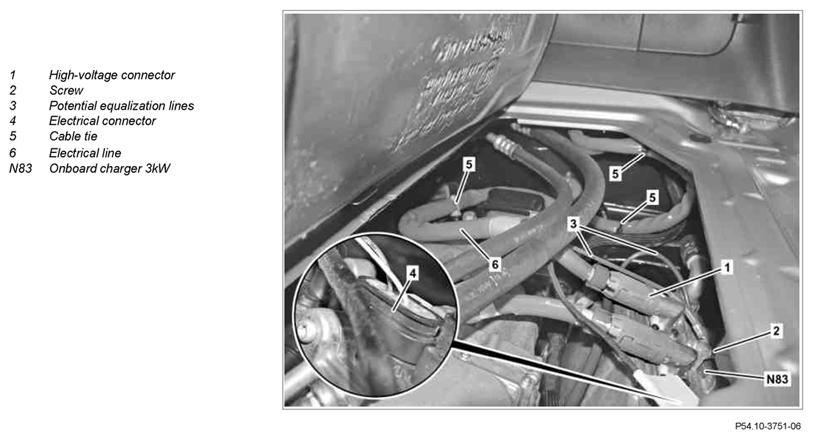

Fig 1: Identifying Charger Feed Socket Remove/Install Components - Without Code 908 (22KW Onboard Charger)
G10978624Courtesy of MERCEDES-BENZ USA

With CODE 908 (22KW onboard charger)

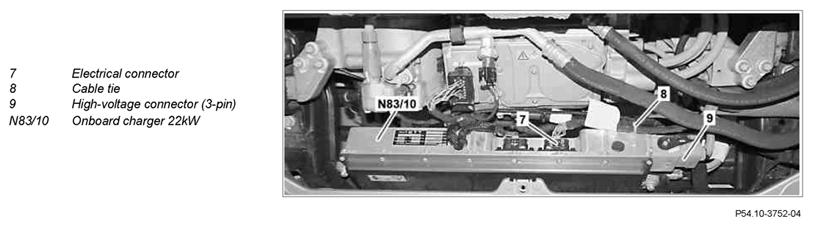

Fig 2: Identifying Charger Feed Socket Remove/Install Components - With Code 908 (22KW Onboard Charger)
G10978625Courtesy of MERCEDES-BENZ USA

Without CODE 494 (USA version)

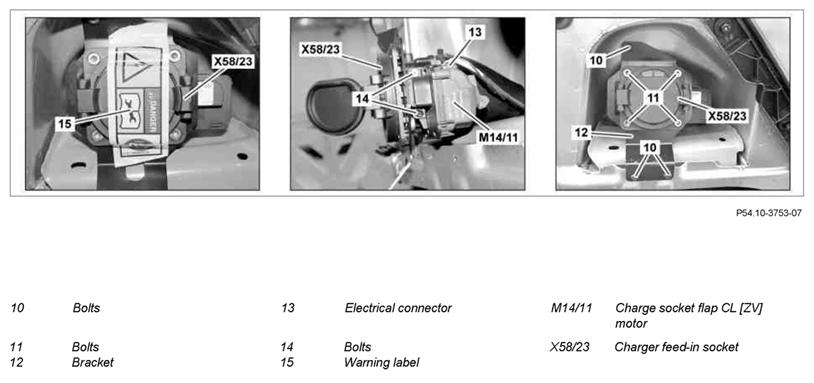

Fig 3: Identifying Charger Feed Socket Remove/Install Components - Without Code 494 (USA Version)
G10978626Courtesy of MERCEDES-BENZ USA

With CODE 494 (USA version)

Fig 4: Identifying Charger Feed Socket Remove/Install Components - With Code 494 (USA Version)
G10978627DANGERNOTESNOTESIMPORTANTREMOVINGINSTALLINGREFER TO SELF-DIAGNOSTIC SYSTEMSIMPORTANTINSTALLATION IMPORTANTSPECIAL TOOLNOTESTORQUE SPECIFICATIONINSTALLATION IMPORTANTINSTALLATION IMPORTANTNOTESSPECIAL TOOLIMPORTANTREFER TO SELF-DIAGNOSTIC SYSTEMSCourtesy of MERCEDES-BENZ USA
DANGER Risk of death  when touching components on vehicles with high-voltage on-board electrical system Do not touch components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers), must not  carry out any work on high-voltage on-board electrical systems. AS54.00-Z-0001-01A
NOTES Note on the high-voltage on-board electrical system   AH54.00-P-0010-01A
NOTES Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
IMPORTANT Evaluation of high-voltage components   AH54.00-P-6500-01SXH
REMOVINGINSTALLING Remove/install
1 Remove transmitter key and mains plug
2 Remove rear CBS AR88.20-P-1900MCC
3 Connect diagnostic system and disable high-voltage on-board electrical system
REFER TO SELF-DIAGNOSTIC SYSTEMS   IMPORTANT Print the power disable event log and add to the vehicle file.
INSTALLATION IMPORTANT : Put the high-voltage on-board electrical system into operation.
AD00.00-P-2000-04MCC
4 Attach warning label (15) directly over vehicle socket flap SPECIAL TOOL Warning label Figure
5 Remove interior flap above engine   AR88.40-P-1100-03MCC
6 Unscrew screw/bolt (2) on onboard charger 3kW (N83) and remove potential equalization lines (3) NOTES
Ensure that the contact surfaces are absolutely clean.
Contact problems can otherwise occur and cause damage to the high-voltage on-board electrical system.
TORQUE SPECIFICATION Bolt, ground line to on-board charger
*BA54.10-P-1008-01H
7.1 Cut cable ties (5) at electrical line (6) MODEL 451.390/392/490/492 with ENGINE 780.993
without CODE 908 (Bordlader 22kW)
INSTALLATION IMPORTANT : Replace cable tie (5).

7.2 Separate cable tie (8) MODEL 451.390/392/490/492 with ENGINE 780.993
with CODE 908 (Bordlader 22kW)
INSTALLATION IMPORTANT : Replace cable tie (8).

8.1 Release and disconnect electrical connector (4) on onboard charger 3kW (N83) MODEL 451.390/392/490/492 with ENGINE 780.993
without CODE 908 (Bordlader 22kW)

8.2 Release and disconnect electrical connector (7) on onboard charger 22kW (N83/10) MODEL 451.390/392/490/492 with ENGINE 780.993
with CODE 908 (Bordlader 22kW)

9.1 Release and disconnect high-voltage connector (1) MODEL 451.390/392/490/492 with ENGINE 780.993
without CODE 908 (Bordlader 22kW)

9.2 Release and disconnect high-voltage connector (3-pin) (9) MODEL 451.390/392/490/492 with ENGINE 780.993
with CODE 908 (Bordlader 22kW)

10 Pull protective covers over high-voltage connector (1) or 3-pin high-voltage connector (9) on line side and component side NOTES
Protect the high-voltage connector (1) or 3-pin high-voltage connector (9) against dirt and moisture.
Otherwise, consequential damage may occur on the on-board high voltage electrical system.
SPECIAL TOOL Set of protective caps
Figure
11.1 Remove screws/bolts (10) MODEL 451.390/392/490/492 with ENGINE 780.993
without CODE 494 (US version)

11.2 Remove screws/bolts (16) MODEL 451.390/392/490/492 with ENGINE 780.993
with CODE 494 (US version)

12 Remove charger feed socket (X58/23) IMPORTANT Make sure that the lines of the charger feed socket (X58/23) are routed correctly.
13 Release and disconnect electrical connector (13) MODEL 451.390/392/490/492 with ENGINE 780.993
without CODE 494 (US version)
When replacing the charger feed socket (X58/23).

14 Unscrew screws/bolts (14) and remove charge socket flap central locking motor (M14/11) MODEL 451.390/392/490/492 with ENGINE 780.993
without CODE 494 (US version)
When replacing the charger feed socket (X58/23).

15 Unscrew screws/bolts (11) and remove charger feed socket (X58/23) from bracket (12) MODEL 451.390/392/490/492 with ENGINE 780.993
without CODE 494 (US version)
When replacing the charger feed socket (X58/23).

16 Install in the reverse order
17 Perform protective earth conductor and insulation resistance test MODEL 451.390/490 with ENGINE 780.993 AR54.10-P-0019-01MEV
18 Connect diagnostic system and clear fault memory
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04MCC
BATTERY

Number Designation MODEL 451.390/392/490/492 without CODE 908 (Onboard charger 22kW) Model 451.390/392/490/49 2 with CODE 908 (Onboard charger 22kW)
BA54.10-P-1008-01H Bolt, ground line to on-board charger Nm 8 13
Fig 5: Identifying Warning Label (451 589 08 63 00)
G09974826Courtesy of MERCEDES-BENZ USA
Fig 6: Identifying Set Of Protective Caps (001 589 02 91 00)
G10978007Courtesy of MERCEDES-BENZ USA
