Remove/install engine with transmission - AR01.10-P-2401MCU

ENGINES 132.910 in MODEL 451.3/4

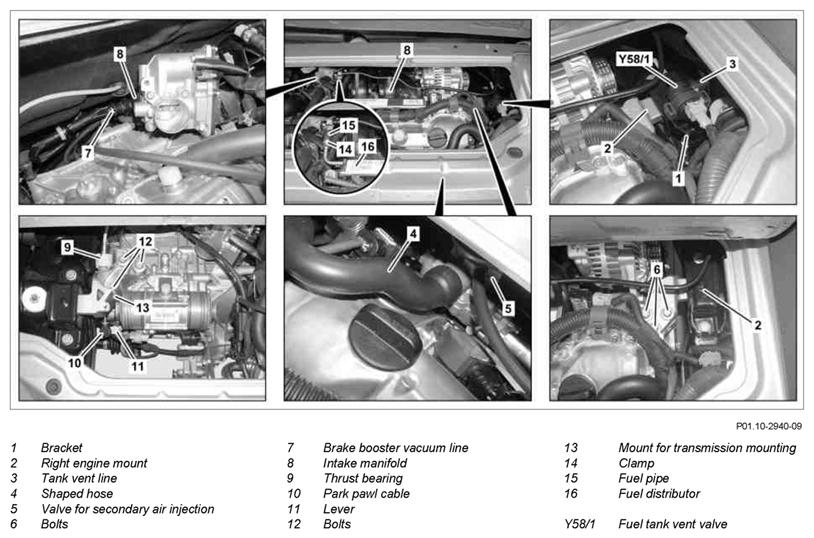

Fig 1: Identifying Engine With Transmission Remove/Install Components (1 Of 2)
G10978011Courtesy of MERCEDES-BENZ USA

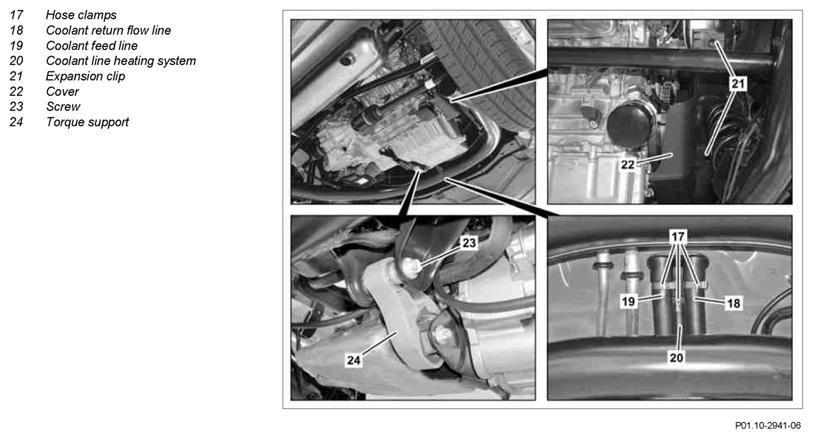

Fig 2: Identifying Engine With Transmission Remove/Install Components (2 Of 2)
G10978012Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
DANGER Risk of explosion  caused by fuel igniting, risk of poisoning  caused by inhaling and swallowing fuel and risk of injury  to eyes and skin caused by contact with fuel No fire, sparks, open flames or smoking.
Pour fuels only into suitable and appropriately marked containers.
Wear protective clothing when handling fuel.
AS47.00-Z-0001-01A
DANGER Risk of injury  to skin and eyes caused by scalding from contact with hot coolant spray. Risk of poisoning  caused by swallowing coolant. Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers.
Wear protective gloves, protective clothing and safety glasses.
AS20.00-Z-0001-01A
NOTES Notes on coolant   AH20.00-N-2080-01A
1 Remove maintenance flap
2 Turn cap on engine coolant expansion reservoir a half turn counterclockwise, relieve pressure and then unscrew the cap
3 Remove right side paneling in trunk   AR68.30-P-4800MCU
4 Remove interior flap above engine   AR88.40-P-1100-03MCC
5 Disconnect ground line of battery   AR54.10-P-0003MCC
6 Disconnect engine wiring harness on vehicle side   AR15.18-P-1000-02MCU
7 Detach tank vent valve (Y58/1) from holder (1) on right engine mount (2) and unlock tank vent line (3) on tank vent valve (Y58/1) and detach
8 Detach molded hose (4) on valve for secondary air injection (5)
9 Detach bolts (6) for engine mount on the right (2) on timing case cover TORQUE SPECIFICATION *BA22.10-P-1007-01M
10 Remove air filter housing   AR09.10-P-1150MCU
11 Detach vacuum line for brake booster (7) at intake manifold (8)
12 Unhook thrust bearing (9) for park pawl cable (10) on transmission and unclip park pawl cable (10) on lever (11)
13 Detach bolts (12) for transmission mounting bearing (13) on transmission TORQUE SPECIFICATION *BA26.00-P-1002-01D
14 Detach clamp (14), disconnect fuel line (15) on fuel distributor (16) and expose IMPORTANT Seal fuel line (15) and fuel distributor (16) using suitable stop plugs.
INSTALLATION IMPORTANT : Replace clamp (14).

15 Remove fender liner in the left and right rear fender   AR88.10-P-1400MCU
16 Remove complete exhaust system   AR49.10-P-7000MCU
17 Remove rear axle crossmember together with bar links   AR35.15-P-0250MCC
18 Drain coolant   AR20.00-P-1142MCU
19 Detach electric wiring harness at transmission   AR26.19-P-0001-05MCU
20 Remove bulkhead wall On model 451.4 AR61.25-P-6600MCU
21 Detach clamps (17) and disconnect coolant return flow line (18), coolant line feed line (19) as well as heater coolant line (20) from the respective coolant pipe INSTALLATION IMPORTANT : Replace clamps (17).
22 Remove expansion clips (21) and remove cover (22)
23 Detach left and right rear axle shaft outboard and fix at a suitable location with a cable ties   AR35.30-P-0620MCU
24 Remove coolant compressor poly-V belt On vehicles with code (I01) Air conditioning Plus AR13.21-P-1202MCU
25 Position major assembly lifting table with universal main assembly mount and fix in place with the mount on the engine   AR01.10-P-2400-06MCU
    SPECIAL TOOL Major assembly lifting platform and universal lifting platform Figure
26 Remove bolt (23) to torque support (24) TORQUE SPECIFICATION *BA22.10-P-1010-01M
27 Remove bolts (12) for transmission mounting bearing (13) on transmission IMPORTANT The bolts (12) are accessible over the left wheel well.
28 Remove bolts (6) for engine mount on the right (2) on timing case cover IMPORTANT The bolts (6) are accessible over the right wheel well.
29 Lower engine with transmission carefully until the charge current line is accessible NOTES During lowering and positioning, ensure that no electrical lines and hoses are pinched to prevent damage.
30 Remove refrigerant compressor and fix at a suitable location using a cable tie On vehicles with code (I01) Air conditioning Plus AR83.55-P-5300-04MCU
    TORQUE SPECIFICATION *BA83.55-P-1001-01V
    TORQUE SPECIFICATION *BA83.55-P-1002-01V
31 Detach charging current line on the engine side   AR15.18-P-2000-01MCU
    TORQUE SPECIFICATION *BA15.30-P-1002-01E
    TORQUE SPECIFICATION *BA15.40-P-1002-01G
32 Carefully lower combustion engine with transmission NOTES During lowering and positioning ensure that no electrical lines and hoses get pinched.
IMPORTANT Aid of helper required.

33 Lift vehicle using the vehicle lift until the engine with transmission can be pulled forward under the vehicle
34 Install in the reverse order
STARTER

Number Designation Engine 132.9
BA15.30-P-1002-01E Cable to starter circuit 30 Nm 10
ALTERNATOR

Number Designation Engine 132.9
BA15.40-P-1002-01G Cable on alternator terminal B+ Nm 10
ENGINE MOUNTS, ENGINE SUPPORTS

Number Designation Engine 132.9
BA22.10-P-1007-01M Bolt, right engine mount to timing case cover Nm 80
BA22.10-P-1010-01M Bolt, torque support to frame-type integral support Nm 115
COMPLETE MANUAL TRANSMISSION

Number Designation Transmission 717.48
BA26.00-P-1002-01D Bolt, transmission mount to transmission Nm 80
REFRIGERANT COMPRESSOR

Number Designation Engine 132.9
BA83.55-P-1001-01V Bolt, AC compressor to cylinder crankcase Nm 20
BA83.55-P-1002-01V Bolt, AC compressor to oil pan Nm 20
Fig 3: Identifying Support (451 589 00 62 00)
G10977992Courtesy of MERCEDES-BENZ USA
