Remove/install poly-V belt for compressor - AR13.21-P-1202MCU
ENGINE 132.910 in MODEL 451.3/4 with CODE (I01) Air conditioning Plus
Illustrated on removed engine
| Removing | |||
| Risk of injury caused by moving parts that can pinch, crush or, in extreme cases, even sever extremities | No parts of the body or limbs should be within the operating range of the mechanism when moving components. | AS00.00-Z-0009-01A | |
| 1 | Remove poly-V belt (1) | AR13.22-P-1202MCU | |

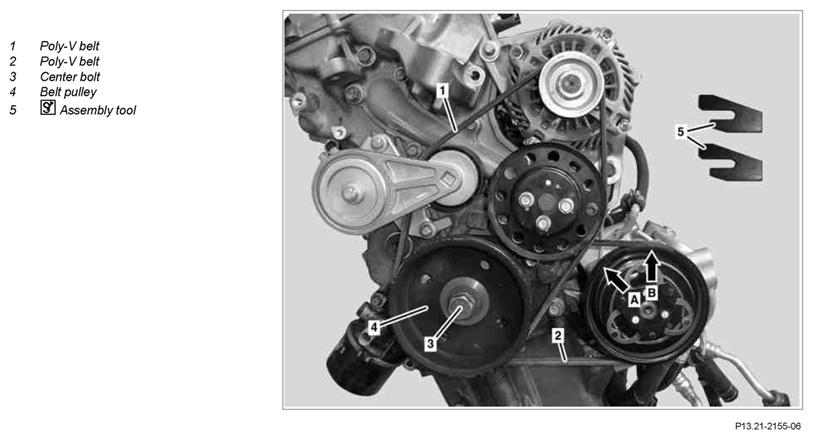

| 2 | Place one clamp for assembly tool (5) in the marked area (arrow A) on refrigerant compressor belt pulley | Fig 2 | |
| 3 | Turn engine at center bolt (3) through about 30° in direction of engine rotation until poly-V belt (2) lies on the first clamp for the assembly tool (5) | Fig 2 | |
| 4 | Place a second clamp for assembly tool (5) in the marked area (arrow A) on refrigerant compressor belt pulley | Fig 2 | |
| 5 | Continue to turn engine at the center bolt (3) through a further 30° until poly-V belt (2) lies on the second clamp for the assembly tool (5) | Fig 2 | |
| 6 | Press poly-V belt (2) using a suitable assembly lever in the upper area slightly outwards and turn engine at center bolt (3) until the poly-V belt (2) can be removed | ||
| 7 | Remove poly-V belt (2) | ||
| Install | |||
| 8 | Position poly-V belt (2) on belt pulley (4), lay in the upper area on the supercharger belt pulley and lock in place with a clamp for the assembly tool (5) in the marked area (arrow B) | Fig 2 | |
| 9 | Turn engine at center bolt (3) through about 30° in direction of engine rotation and lock poly-V belt (2) in place using the second clamp for the assembly tool (5) in the marked area (arrow B) | Fig 2 | |
| 10 | Turn engine at center bolt (3) until poly-V belt (2) lies complete on the pulley | ||
| 11 | Install poly-V belt (1) | AR13.22-P-1202MCU |
