Remove/install side paneling in trunk - AR68.30-P-4800MCU

MODEL 451.3/4

Shown on right side on model 451.3

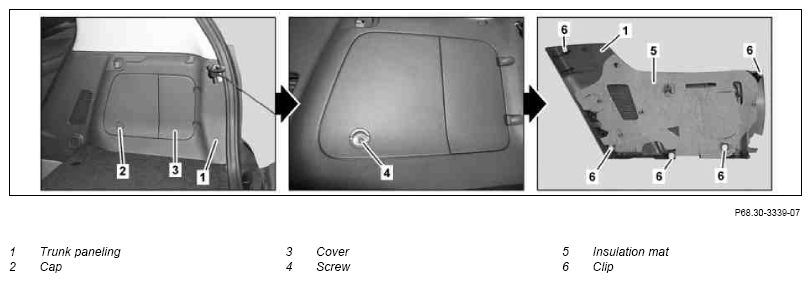

Fig 1: Identifying Side Paneling In Trunk Remove/Install Components - Shown On Right Side On Model 451.3

Courtesy of MERCEDES-BENZ USA

Driver side, as of 31.8.10

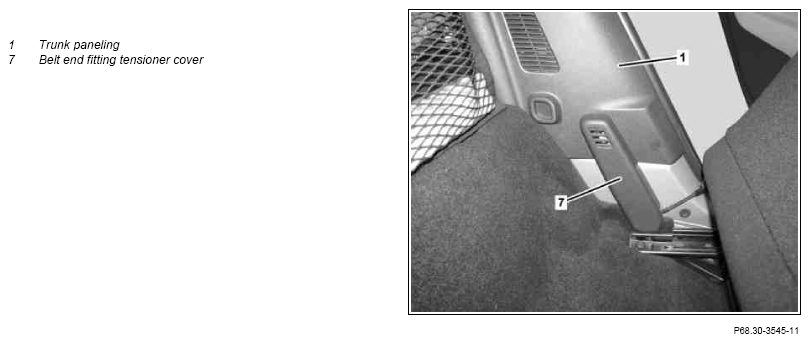

Fig 2: Identifying Side Paneling In Trunk Remove/Install Components - Driver Side, As Of 31.8.10

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Adjust left and right seat toward front
2	Unclip belt end fitting tensioner cover (7)	Driver side, as of 31.8.10
3.1	Unclip cap (2) below right trunk paneling (1) and remove	When removing right trunk paneling (1).
3.2	Unclip cover (3) on left trunk paneling (1) and remove	When removing left trunk paneling (1).
4	Unscrew bolt (4) from trunk paneling (1)	The bolt (4) is located on the right trunk paneling (1) behind the cap (2).
5	Unclip trunk paneling (1) and remove	With code (C17) smart surround sound system, disconnect electrical connector on left rear and right rear speaker. Check clips (6) on trunk paneling (1), replace if necessary. Position edge guard on lower rear-end door in area of trunk paneling (1) with suitable tool.
6	Remove insulating mat (5)	When replacing trunk paneling (1).
7	Install in the reverse order
