Remove/install fresh up - AR88.00-P-1200MCC

MODEL 451.3/4

Shown on model 451.3 as of 20.3.12

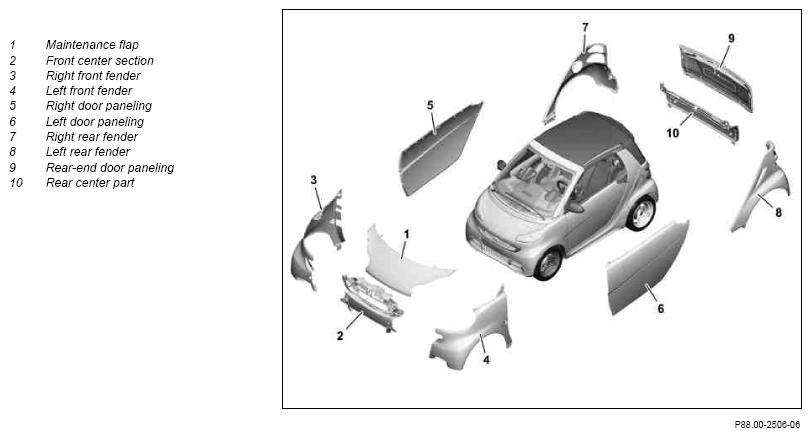

Fig 1: Identifying Fresh Up Remove/Install Components - Shown On Model 451.3 As Of 20.3.12

Courtesy of MERCEDES-BENZ USA

	Remove/install
		When installing Fresh Up Exterior, modify all detachable parts not present on replacement part
1	Remove maintenance flap (1)
2	Remove left front fender (4) and right front fender (3)	Vehicles up to 19.3.12	AR88.10-P-1000MCC
		Vehicles as of 20.3.12	AR88.10-P-1000MCF
3	Remove front center part (2)		AR88.00-P-1100MCC
4	Remove left door paneling (6) and right door paneling (5)		AR72.18-P-1000MCC
5	Remove left rear fender (8) and right rear fender (7)		AR88.10-P-1100MCC
6	Remove rear center section (10)		AR88.00-P-1300MCC
7	Remove door paneling on rear-end door (9)		AR72.20-P-1000MCC
8	Install in the reverse order
