Remove/install front fenders - AR88.10-P-1000MCF

MODEL 451.3/4 as of 3/20/12

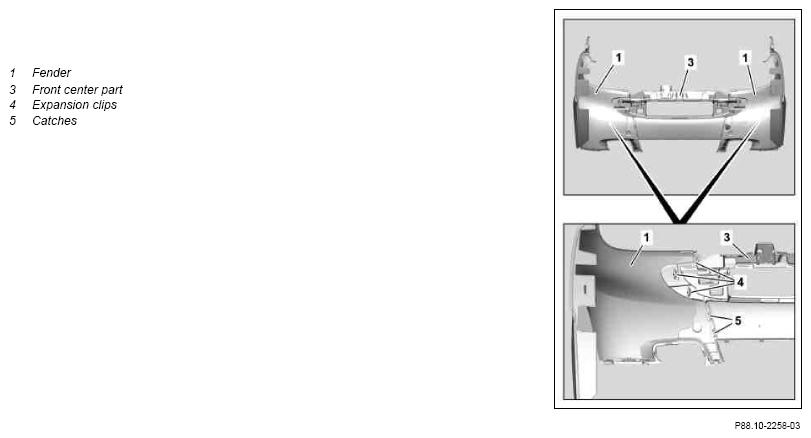

Fig 1: Identifying Front Fenders Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove upper and lower radiator grille		AR88.40-P-4001MCF
2	Remove expansion clips (4)
3	Loosen catches (5) between left and right fender (1) and front center part (3)
4	Remove left and right fender (1) from front center part (3)
5	Install in the reverse order
