Remove/install front center part - AR88.00-P-1100MCC
MODEL 451.3/4
Shown on model 451.3/4 as of 20.3.12

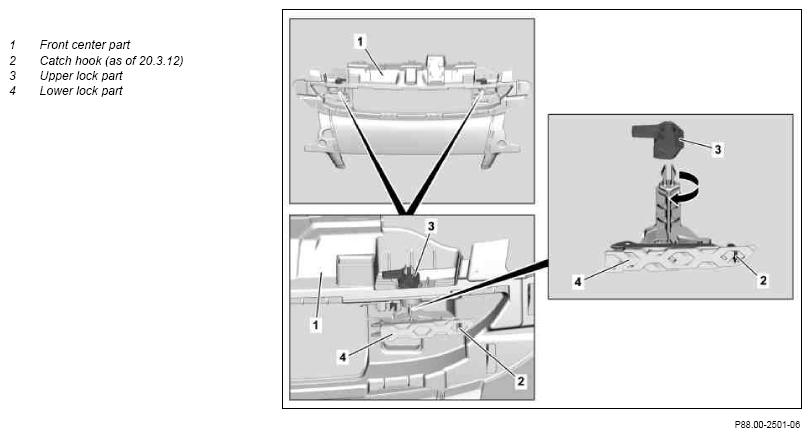

Fig 1: Identifying Front Center Part Remove/Install Components - Shown On Model 451.3/4 As Of 20.3.12
| Remove/install | |||
| 1 | Remove left and right fender from front center part (1) | Vehicles up to 19.3.12 | AR88.10-P-1000MCC |
| Vehicles as of 20.3.12 | AR88.10-P-1000MCF | ||
| 2.1 | Turn left and right lower lock part (4) in direction of rotation (arrow) to stop | In vehicles up to 19.3.12 | |
| 2.2 | Unlock left and right lower lock part (4) on catch hook (2) and turn in direction of rotation (arrow) to stop | In vehicles as of 20.3.12 | |
| 3 | Remove left and right upper lock part (3) upward | ||
| 4 | Remove left and right lower lock part (4) downward. | ||
| 5 | Remove license plate with bracket and remove | ||
| 6 | Install in the reverse order |
