Remove/install rear fender - AR88.10-P-1100MCC

MODEL 451.3/4

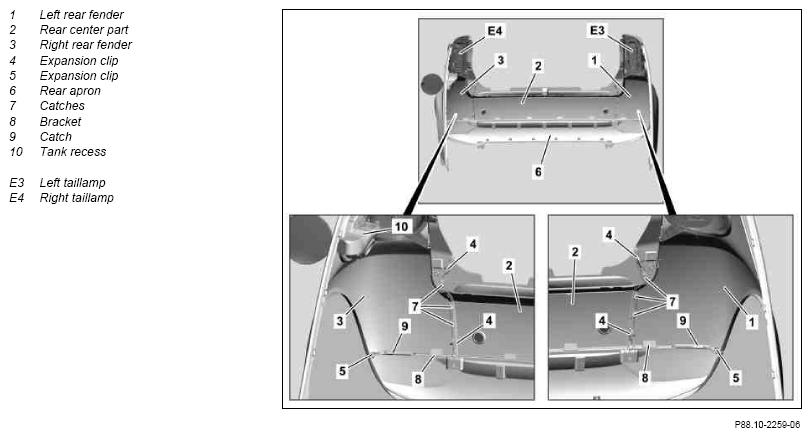

Fig 1: Identifying Rear Fender Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove rear CBS		AR88.20-P-1900MCC
2	Remove expansion clip (4, 5) on left rear fender (1) and right rear fender (3)
3	Loosen catches (9) on rear apron (6).
4	Loosen catches (7) between left rear fender (1) and right rear fender (3) and rear center part (2).
5	Loosen left rear fender (1) and right rear fender (3) from bracket (8) and remove.
6	Remove left taillamp (E3) or right taillamp (E4)	When replacing left rear fender (1) and right rear fender (3).	AR82.10-P-4905MCC
7	Unclip tank recess (10) from right rear fender (3) and remove.	When replacing right rear fender (3).
8	Unclip air intake grille from left rear fender (1) and remove.	When replacing left rear fender (1).
9	Install in the reverse order
