Radio Antenna Cord: Removal

CAUTION: Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing (See PRECAUTION ).
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait for at least 90 seconds after disconnecting the cable to prevent the airbag from working.
    NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
  2. REMOVE DECK BOARD ASSEMBLY  (See REMOVAL )
  3. REMOVE NO. 1 REAR SEAT LEG COVER RH  (See REMOVAL )
  4. REMOVE NO. 1 REAR SEAT LEG COVER LH  (See REMOVAL )
  5. REMOVE NO.2 REAR SEAT LEG COVER LH  (See REMOVAL )
  6. REMOVE REAR SEAT ASSEMBLY RH  (See REMOVAL )
  7. REMOVE REAR SEAT ASSEMBLY LH  (See REMOVAL )
  8. REMOVE FRONT DOOR SCUFF PLATE RH  (See REMOVAL )
  9. REMOVE FRONT DOOR SCUFF PLATE LH  (See REMOVAL )
  10. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY  (See REMOVAL )
  11. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY  (See REMOVAL )
  12. REMOVE COWL SIDE TRIM BOARD RH  (See REMOVAL )
  13. REMOVE COWL SIDE TRIM BOARD LH  (See REMOVAL )
  14. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH  (See REMOVAL )
  15. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH  (See REMOVAL )
  16. REMOVE REAR DOOR SCUFF PLATE RH  (See REMOVAL )
  17. REMOVE REAR DOOR SCUFF PLATE LH  (See REMOVAL )
  18. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH  (See REMOVAL )
  19. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH  (See REMOVAL )
  20. REMOVE REAR DECK TRIM COVER  (See REMOVAL )
  21. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY  (See REMOVAL )
  22. REMOVE REAR SEAT OUTER BELT ASSEMBLY RH  (See REMOVAL )
  23. REMOVE REAR SEAT OUTER BELT ASSEMBLY LH  (See REMOVAL )
  24. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH  (See REMOVAL )
  25. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH  (See REMOVAL )
  26. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH  (See REMOVAL )
  27. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH  (See REMOVAL )
  28. REMOVE SEAT BELT ANCHOR COVER CAP  (See REMOVAL )
  29. REMOVE FRONT SEAT OUTER BELT ASSEMBLY RH  (See REMOVAL )
  30. REMOVE FRONT SEAT OUTER BELT ASSEMBLY LH  (See REMOVAL )
  31. REMOVE CENTER PILLAR LOWER GARNISH RH  (See REMOVAL )
  32. REMOVE CENTER PILLAR LOWER GARNISH LH  (See REMOVAL )
  33. REMOVE CENTER PILLAR UPPER GARNISH RH  (See REMOVAL )
  34. REMOVE CENTER PILLAR UPPER GARNISH LH  (See REMOVAL )
  35. REMOVE FRONT PILLAR GARNISH RH  (See REMOVAL )
  36. REMOVE FRONT PILLAR GARNISH LH  (See REMOVAL )
  37. REMOVE ASSIST GRIP  (See REMOVAL )
  38. REMOVE VISOR ASSEMBLY RH  (See REMOVAL )
  39. REMOVE VISOR ASSEMBLY LH  (See REMOVAL )
  40. REMOVE VISOR HOLDER RH  (See REMOVAL )
  41. REMOVE VISOR HOLDER LH  (See REMOVAL )
  42. REMOVE ROOM LIGHT ASSEMBLY  (See REMOVAL )
  43. REMOVE MAP LIGHT ASSEMBLY  (See REMOVAL )
  44. REMOVE INSTRUMENT CLUSTER FINISH CENTER PANEL SUB-ASSEMBLY  (See REMOVAL )
  45. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY  (See REMOVAL )
  46. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY  (See REMOVAL )
  47. REMOVE COMBINATION METER ASSEMBLY  (See REMOVAL )
  48. REMOVE UPPER INSTRUMENT PANEL SUB-ASSEMBLY  (See REMOVAL )
  49. REMOVE REAR CENTER SEAT OUTER BELT ASSEMBLY  (See REMOVAL )
  50. REMOVE SEAT BELT ANCHOR COVER  (See REMOVAL )
  51. REMOVE ROOF HEADLINING ASSEMBLY  (See REMOVAL )
  52. REMOVE NO. 2 ANTENNA CORD SUB-ASSEMBLY

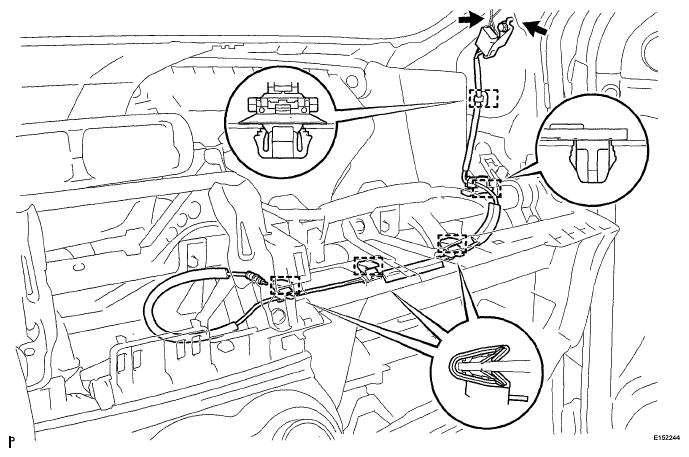

    Fig 1: Identifying No. 2 Antenna Cord Sub-Assembly Clamps
    G05402944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the bolt.
    2. Disconnect the connector.
    3. Remove the 5 clamps.
  53. REMOVE ANTENNA CORD SUB-ASSEMBLY
    Fig 2: Removing Antenna Cord From Cutout Of Roof Headlining
    G05402945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 6 pieces of tape.
    2. Remove the antenna cord from the cutout of the roof headlining.
