Installing Wire Harness For Tailgate At The Right

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

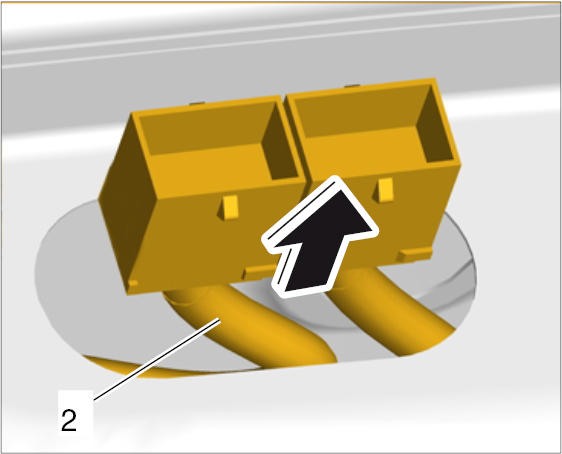

Guide wire harness -2- forward through the cut-outs in the roof -arrow- .

Fig 1: Guiding Wire Harness Through At Roof
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

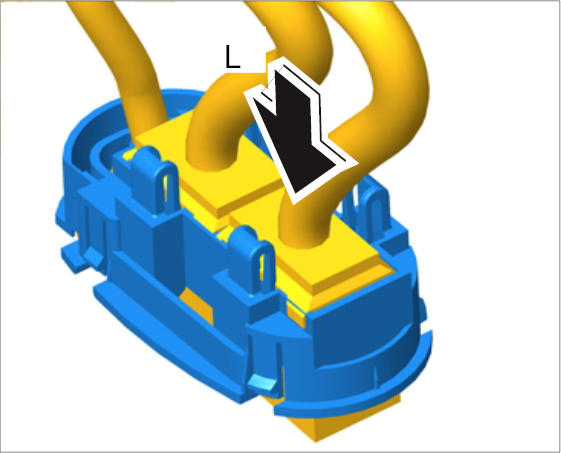

Clip connector for connection point into the bracket -L- .

Fig 2: Clipping Connector Into Bracket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

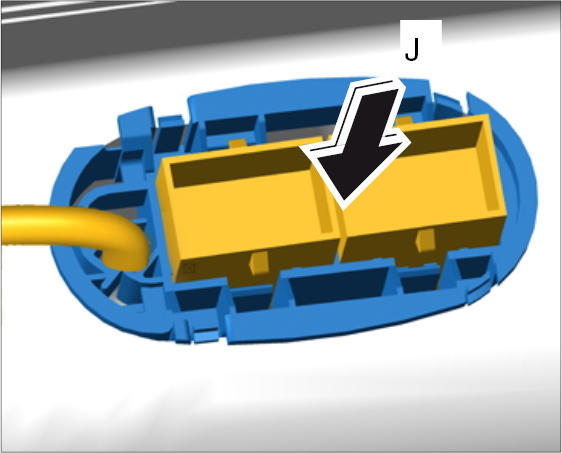

Clip bracket for connection point into the body -J- .

Fig 3: Clipping Bracket For Connection Point Into Body
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

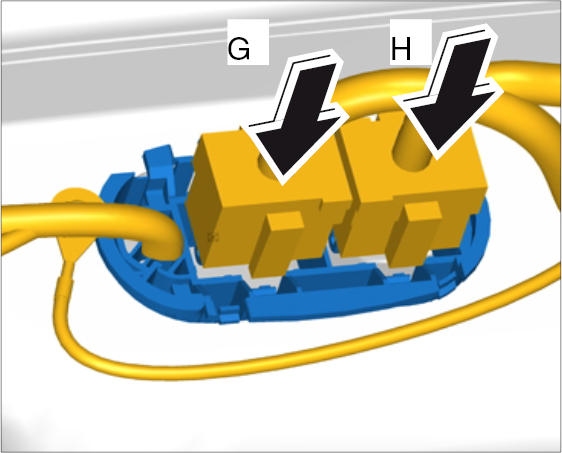

Plug in electric plug connections for the connection point -G, H- until the connectors engage securely.

Fig 4: Plugging In Plug Connections At Connection Point
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

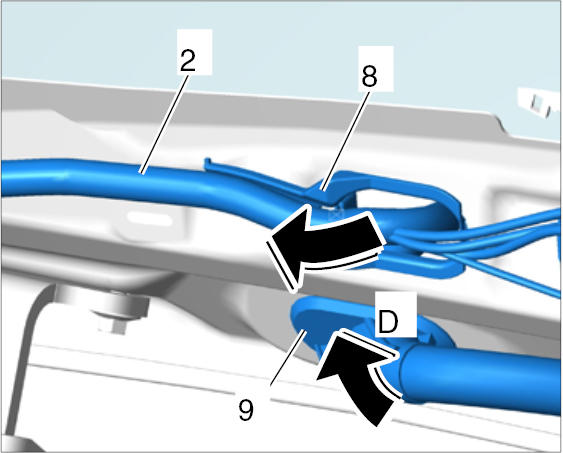

Pull wire harness -2- through the tailgate -D- and insert rubber sleeves -9- .

Fig 5: Guiding Wire Harness Through Tailgate
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure wire harness -2- to bracket -8- with adhesive tape.

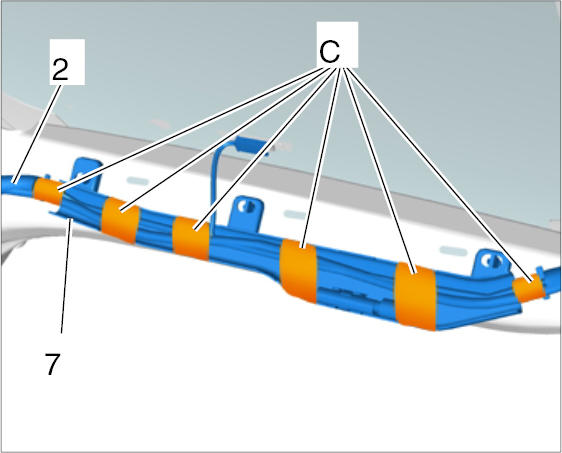

Secure wire harness -2- to bracket -7- with adhesive tape -C- .

Fig 6: Identifying Wire Harness Line And Bracket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

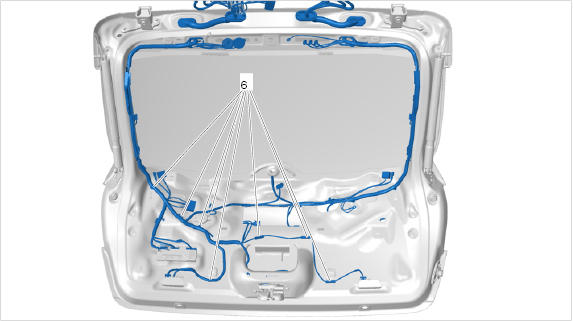

Clip in fixing clips -6- for wire harness for tailgate at the right.

Fig 7: Identifying Clip In Fastening Points
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Plug in electric plug connections for the antenna amplifier. → INSTALLING ANTENNA AMPLIFIER - section on "Installing"
Plug in electric plug connection for the rear lid buzzer. → INSTALLING REAR LID BUZZER - section on "Installing"
Plug in electric plug connection for upper part of lid lock. → INSTALLING UPPER PART OF REAR LID LOCK - section on "Installing"
Plug in electric plug connection for rear window heating.
Plug in electric plug connections for the rear lid control unit. → INSTALLING CONTROL UNIT FOR REAR LID - section on "Installing"
Plug in electric plug connection for actuating cylinders for the rear lid. → INSTALLING ACTUATING CYLINDER FOR REAR LID - section on "Installing"

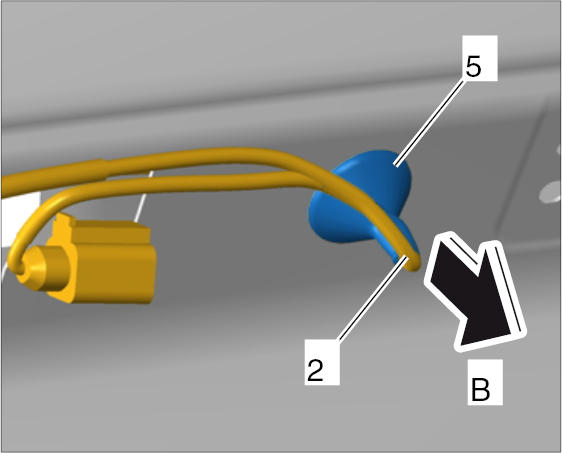

Pull wire harness -2- outwards -B- and press rubber sleeve -5- outwards from the inside.

Fig 8: Fitting Rubber Sleeve On Handle Strip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

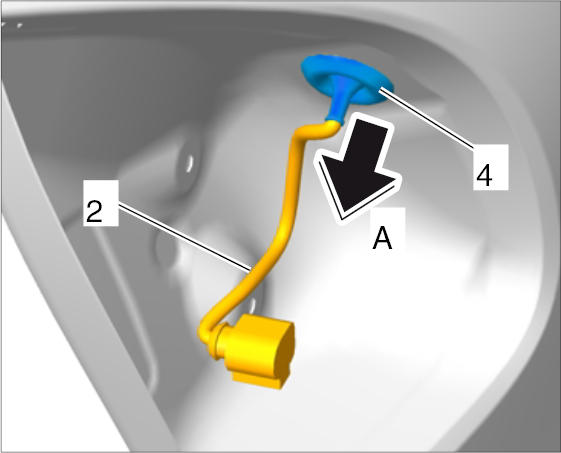

Pull wire harness -2- outwards -A- and press rubber sleeve -4- outwards from the inside -A- .

Fig 9: Fitting Rubber Sleeve On Tail Light
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

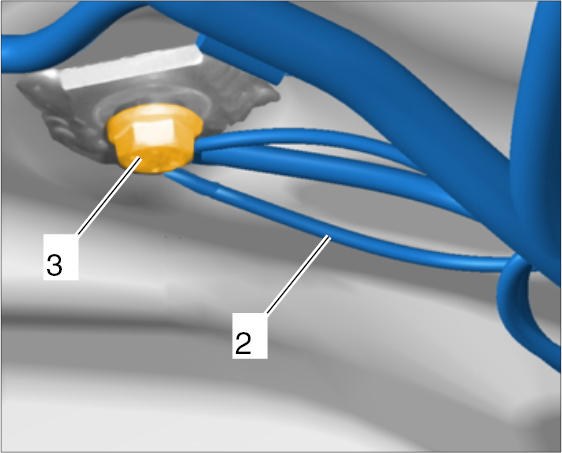

Connect ground line to the rear lid -2- and tighten fastening screw -3- . Tightening Torque 9 Nm (6.5 ft. lb.)

Fig 10: Identifying Ground Line At Rear Lid
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
