Installing Antenna Amplifier

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Insert antenna amplifier into the cut-out -A, B- .

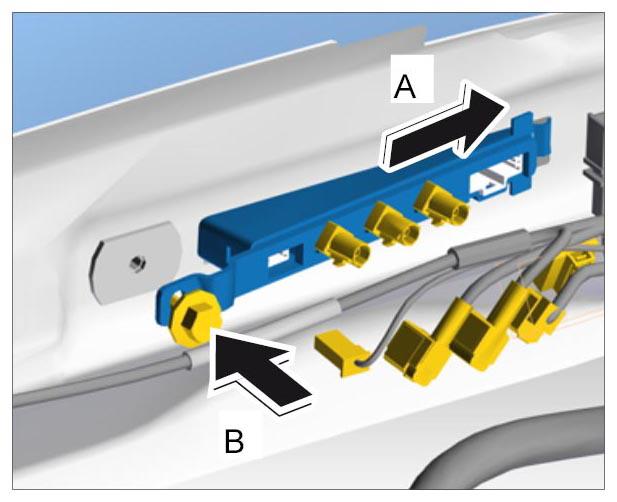

Fig 1: Fitting Antenna Amplifier
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in fastening screw Tightening torque 9 Nm (6.5 ftlb.) .
Plug in electric plug connection until it engages securely.

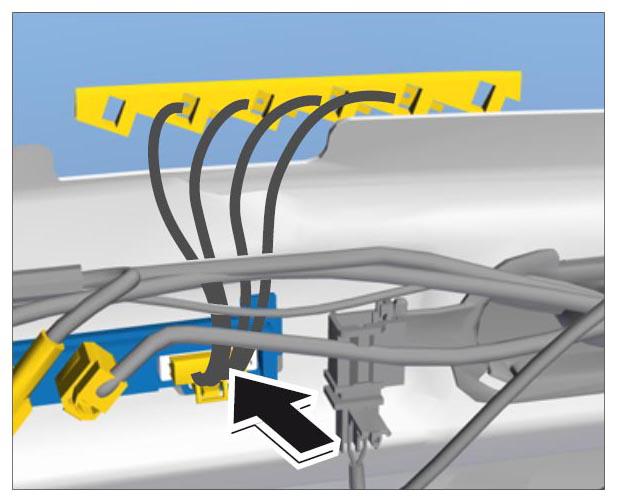

Fig 2: Installing Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Plug in three electric plug connections -A- until they engage securely.

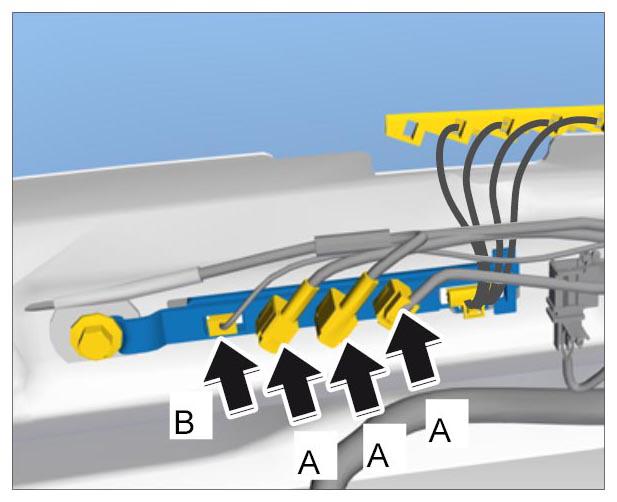

Fig 3: Installing Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Plug in electric plug connection -B- .
1. 5.1. Check that the electric plug connection is seated securely.
