Installing Actuating Cylinder For Rear Lid

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. A second person should hold the rear lid to prevent it from closing accidentally.
  2. Position the actuating cylinder on the ball head and press it in -arrow-  . The actuating cylinder must engage audibly.

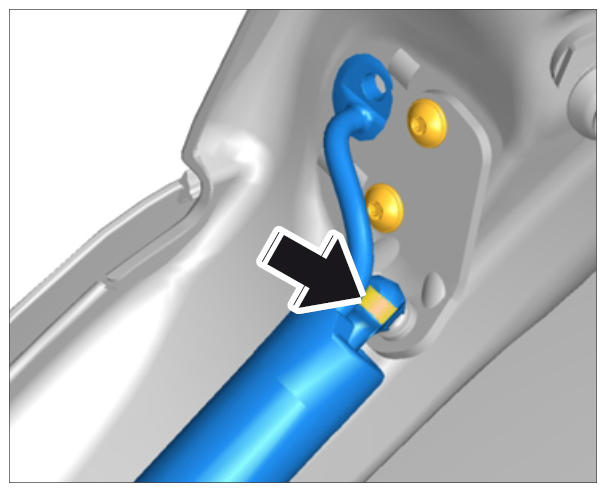

    Fig 1: Locating Actuating Cylinder For Rear Lid
    G09939303Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Check that the safety clip is engaged at the exact position required. The safety clip must be directly at the head of the actuating cylinder.
  4. Installation is performed in reverse order to removal.
