Installing Rear Lid Buzzer

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Plug in electric plug connection on the buzzer until it engages securely -arrow B-  .

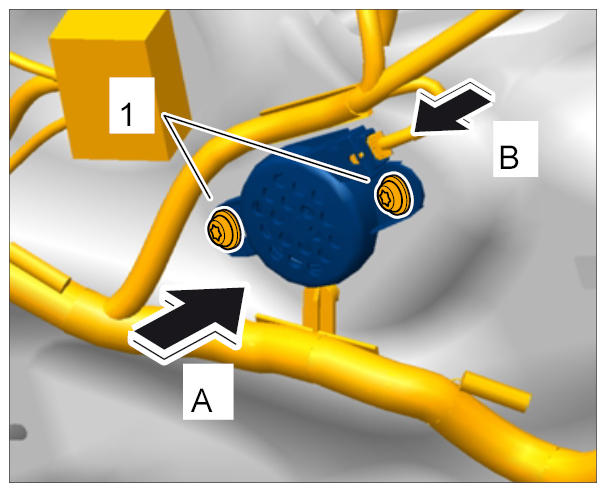

    Fig 1: Installing Rear Lid Buzzer
    G09939306Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Position buzzer on the rear lid trim panel -arrow A-  and secure with the fastening screw -1-  .
