Preliminary Work: Notes
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Information
- Dispose of fluid in accordance with legal requirements .
- Remove engine.
- Remove the transmission. → 100127 REMOVING ENGINE FROM TRANSMISSION AND MOUNTING ENGINE ON TRANSMISSION
- Secure engine on mounting bracket.
- Remove engine carrier eyebolt at the front and rear.
- Remove the engine wire harness. → REMOVING WIRE HARNESS FOR ENGINE
- Remove bar ignition modules. → 282020 REMOVING AND INSTALLING BAR IGNITION MODULES ON DFI ENGINES
- Remove intake-air distributor. → REMOVING INTAKE-AIR DISTRIBUTOR - section on "Removing"
- Remove drive belt. → REMOVING DRIVE BELT - section on "Removing"
- Remove belt tensioner. → REMOVING BELT TENSIONER - section on "Removing"

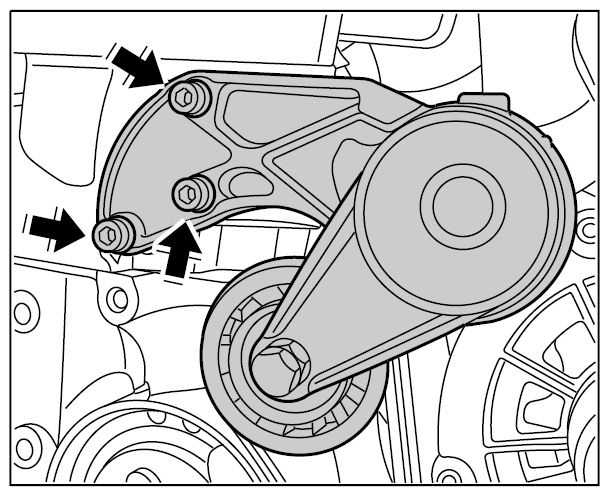

Arrow - Belt tensioner
- Remove cylinder head cover.→ 158219 REMOVING AND INSTALLING CYLINDER HEAD COVER ON V6 DFI ENGINES
- Remove drive plate on vehicles with automatic transmission. → 136319 REMOVING AND INSTALLING DRIVE PLATE FOR TORQUE CONVERTER
- Remove oil pan. → REMOVING OIL PAN - section on "Removing"
- Remove upper and lower timing-case cover. → REMOVING TIMING-CASE COVER - section on "Removing"
- Position crankshaft to the compression TDC for cylinder 1. → 150502 CHECKING THE TIMING ON V6 DFI ENGINES
Information
