Removing Drive Belt
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Drive belt removed incorrectly
- Risk of damage to drive belt
→ Only remove the drive belt when it is cold.
→ Replace damaged drive belt.
NOTE:
Drive belt breaks and becomes jammed
- Risk of damage to components (trim panels, electric cables, etc.)
- Sealing ring on crankshaft vibration balancer can start to leak
- Vibration balancer can overheat and lose its strength
→ Following belt breakage, check adjacent components and the interior of the engine compartment for damage, and repair or replace damaged parts if necessary.
→ Find out why the belt broke. Check deflection rollers or crankshaft vibration balancer for prior damage.
→ If the drive belt is jammed, replace vibration balancer.
WARNING:
Rotating components
- Danger of limbs being trapped or severed
→ Disconnect power supply to the drive motor of components or to the battery.

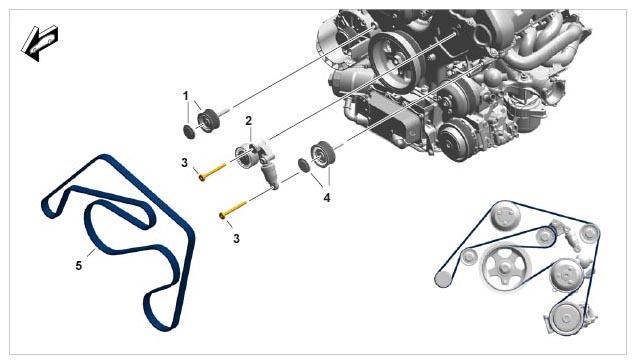

- Deflection Roller 2
- Hydraulic Belt Tensioner
- Screw, M8 x 96
- Deflection Roller 1
- Dual Poly V-Belt
- Mark the rolling direction of the drive belt with chalk.
- Open coolant hose connecting clip. Lift coolant hose aside.

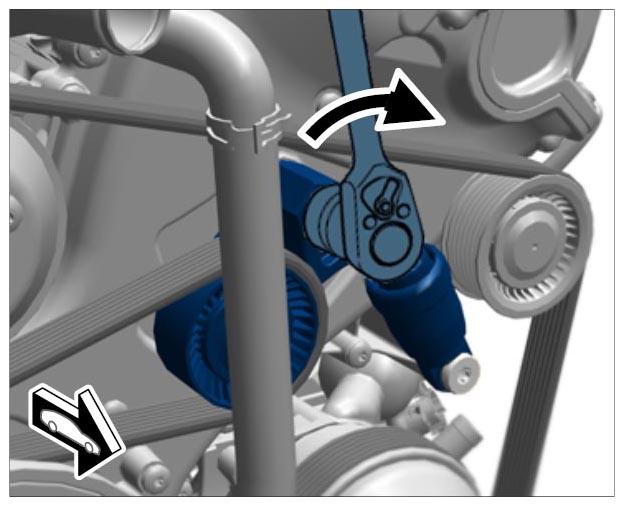

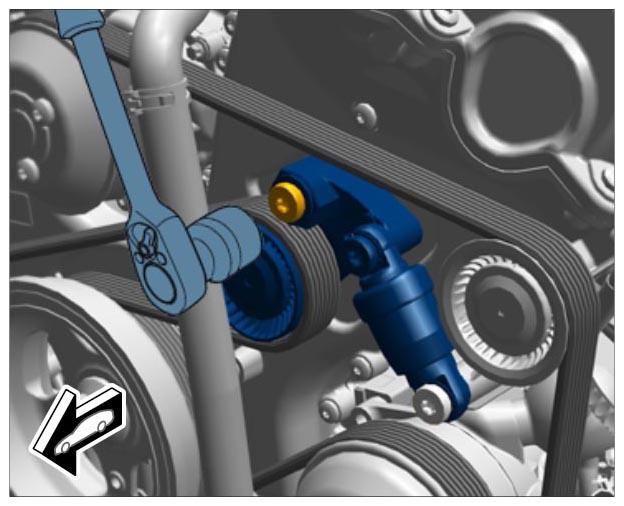

- Relieve and remove drive belt. To do this, turn the belt tensioner clockwise at the hexagon → Belt tensioner hexagon using a ring wrench (a/f 30) or change-over ratchet with socket → Loosening the belt (relieve the drive belt) and remove the drive belt from the tensioning roller. Then relieve the belt tensioner slowly.
- Remove drive belt.
