Removing Belt Tensioner

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Screw M8 x 50 screw -arrow-  into the belt tensioner.

    Slacken the belt tensioner until the drive belt is loose.

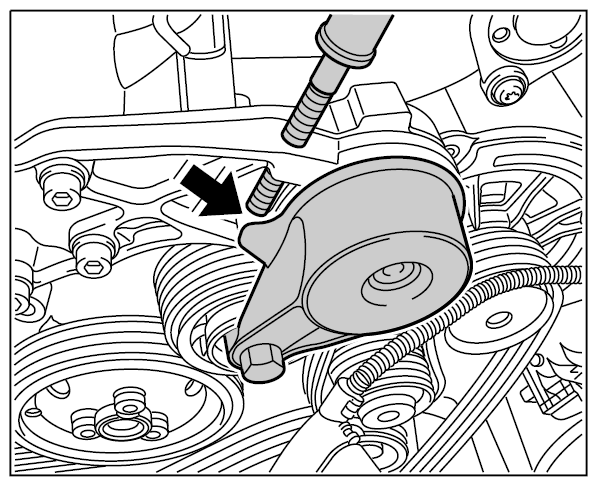

    Fig 1: Locating Belt Tensioner
    G09932220Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Loosen fastening screws for belt tensioner. -arrows-

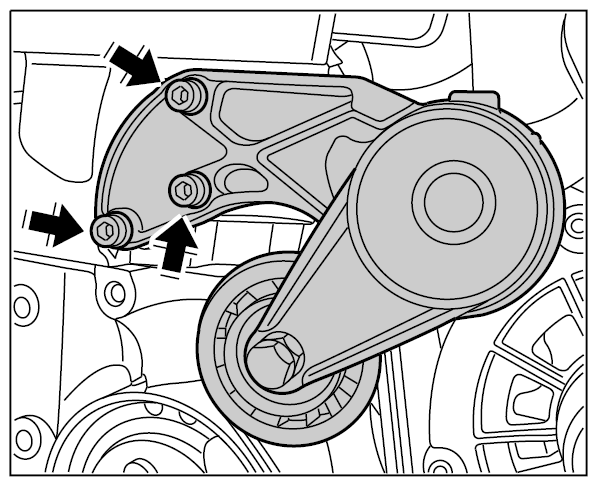

    Fig 2: Locating Belt Tensioner Screws
    G09932221Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove belt tensioner.
