Removing Oil Pan

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Toxic substances

Danger of poisoning or suffocation
Danger of burns to the eyes and skin

→ Ventilate the work area well.

→ Never ingest or inhale.

→ Read specific information on the Hazard Sheet.

→ Do not smoke, eat or drink in the work area.

WARNING: Hot fluid

Danger of scalding

→ Let the fluid cool down.

→ Wear personal protective gear.

WARNING: Highly inflammable or explosive materials

Danger of fire or explosion

→ Avoid contact with hot parts or sources of ignition.

→ Use suction to remove ignitable vapors.

→ Attach warning sign in a clearly visible position.

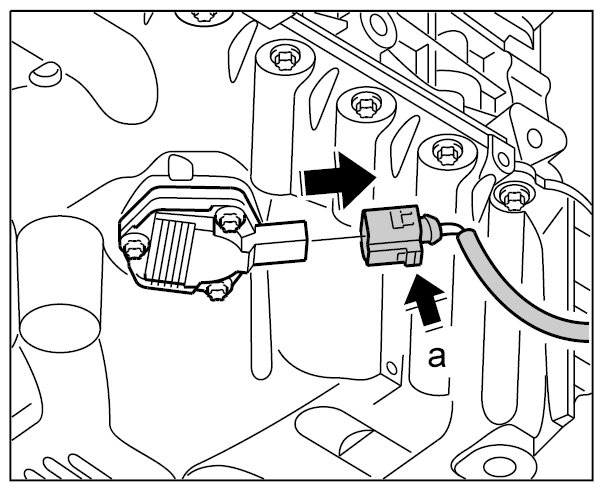

Release connector on oil level sensor -a- and pull it off -arrow- .

Fig 1: Removing Oil Level Sensor Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

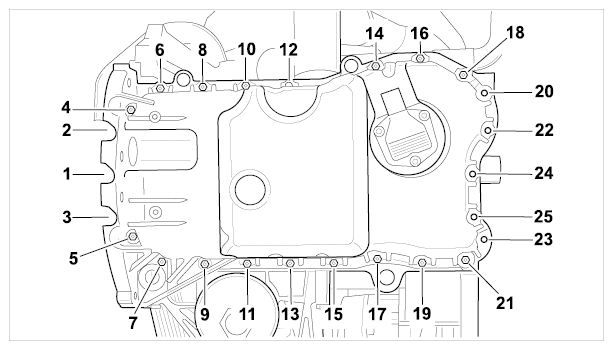

Loosen fastening screws on oil pan in reverse numerical order (25... 1).

Fig 2: Oil Pan Screws Loosening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the oil pan.
Loosen the oil pan by tapping it lightly with a rubber hammer if necessary.

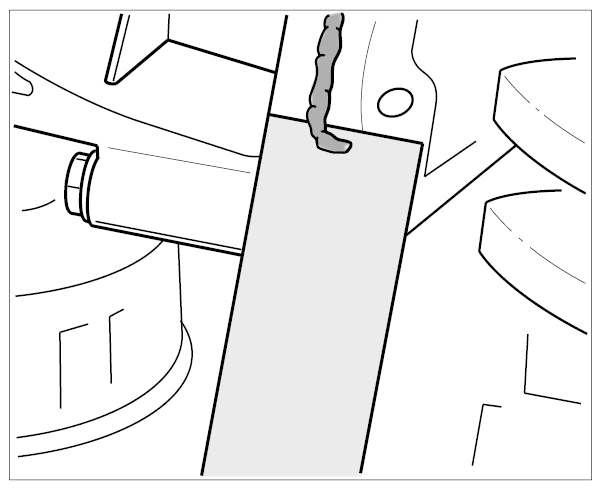

Remove sealant from the crankcase with a plastic wedge.

Fig 3: Removing Sealant Crankcase Using Plastic Wedge
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

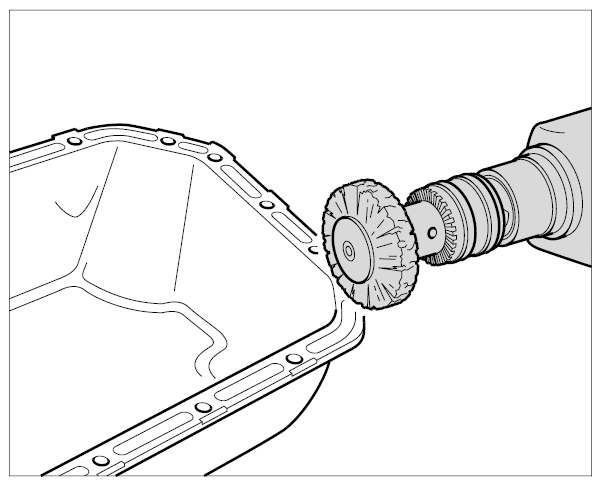

Clean the oil pan thoroughly.
Use a special plastic brush for drills if necessary.

Fig 4: Cleaning Oil Pan Using Plastic Brush
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
