Installing Wire Harness For Backrest (Front Seat): Notes

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Overview of plugs for wire harness for backrest

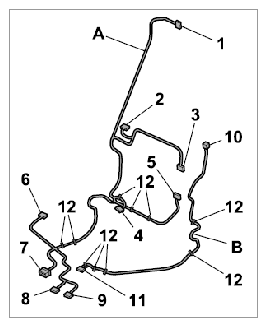

Fig 1: Overview Of Plugs For Wire Harness For Backrest
G09831383Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Wire harness for backrest (front seat)
  2. Wire harness for airbag
  1. Connector for control valve for lumbar support adjustment (only for lumbar support)
  2. Connector for sensor for lower air cushion on lumbar support (only for lumbar support with memory)
  3. Connector for sensor for upper air cushion on lumbar support (only for lumbar support with memory)
  4. Connector for motor for backrest adjustment
  5. Plug connection for motor for lumbar support adjustment (only for lumbar support)
  6. Plug connection for air cushion switch (only for sports seats)
  7. Connector for control unit for memory seat adjustment (only for seats with memory)
  8. Plug connection for air cushion motor (only for sports seats)
  9. Connector for control valve for air cushion (only for sports seats)
  10. Connector for airbag
  11. Connector for central plug
  12. Tie-wraps
  1. Route wire harness for airbag -B-  and secure with new tie-wraps -12-  .
  2. Fit connector -11-  on central plug. → Installing Front Belt Lock - section on "Installing"
  3. Route wire harness for backrest -A-  and secure with new tie-wraps -12-  .
  4. Push connector -9-  onto air cushion control valve until it engages firmly. → Installing Control Valve For Air Cushion - section on "Installing"
  5. Push plug connection -8-  onto motor for air cushion until it engages firmly. → Installing Motor For Air Cushion - section on "Installing"
  6. Attach connector -7-  to control unit for memory seat adjustment until it engages firmly. → Installing Control Unit For Memory Seat Adjustment - section on "Installing"
  7. Push plug connection -6-  onto air cushion switch until it engages firmly. → Installing Switch For Seat Adjustment - section on "Installing"
  8. Connect plug connection -5-  on motor for lumbar support adjustment until it engages firmly. → Installing Motor For Lumbar Support - section on "Installing"
  9. Attach connector -4-  to motor for backrest adjustment until it engages firmly. → Installing Motor For Backrest Adjustment - section on "Installing"
  10. Push connectors -2 and 3-  onto sensors for lumbar support until they click into place. → Installing Lumbar Support - section on "Installing"
  11. Push connector -1-  onto control valve for lumbar support adjustment until it engages firmly. → Installing Control Valve For Lumbar Support Adjustment - section on "Installing"
