Rear Seat Back Cushion Cover and Pad Replacement

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

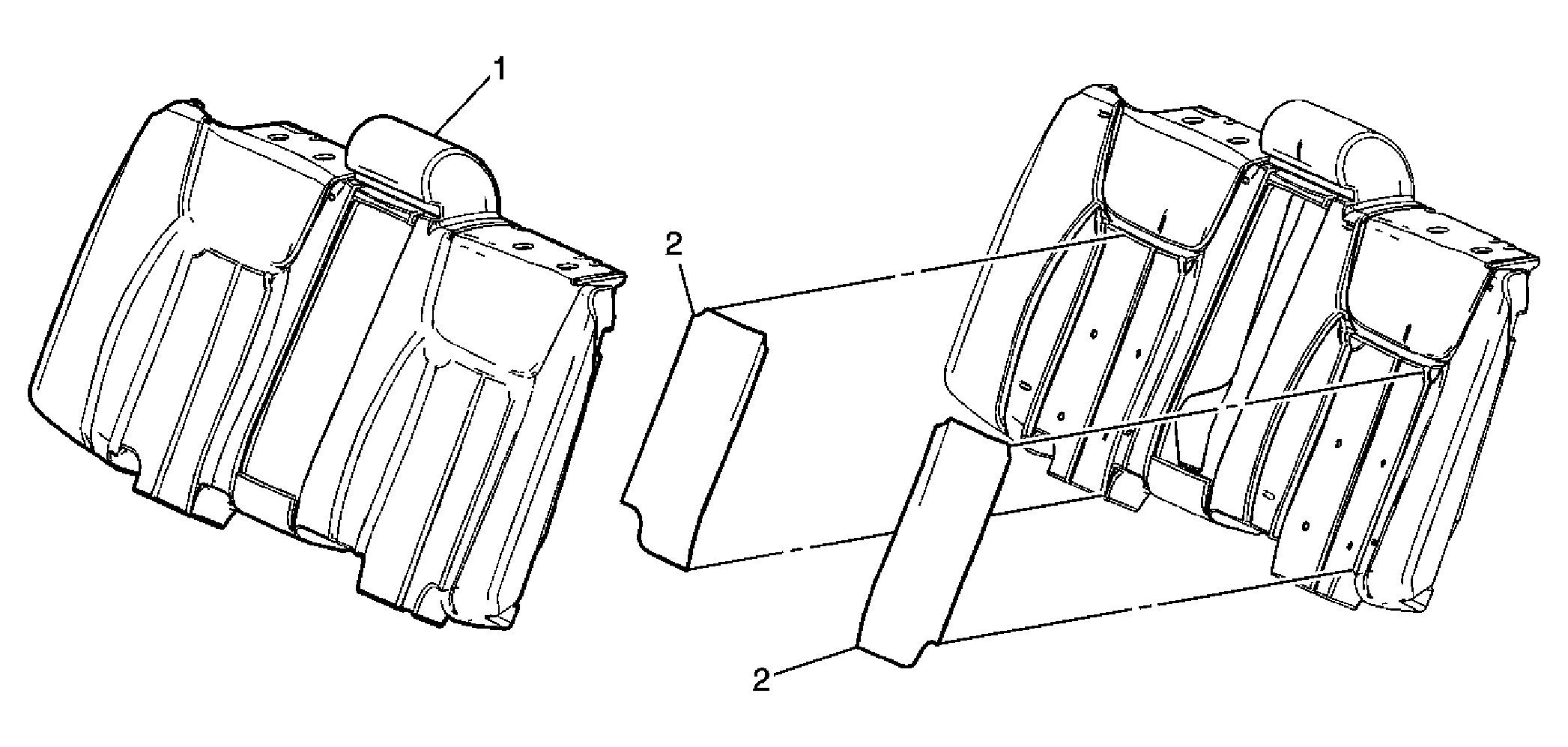

Fig 1: Seat Back Cover and Pad Replacement - Rear

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement . Remove the rear seat back cushion. Refer to Rear Seat Back Cushion Replacement . Remove the rear seat head restraints, if equipped. Refer to Rear Seat Head Restraint Replacement . Remove the rear seat armrest. Refer to Rear Seat Armrest Replacement .
1	Rear Seat Back Cushion Cover Tip: Remove the J-hooks that secure the cover to the frame.
2	Rear Seat Back Cushion Pad Tip: Peel the heater elements from the seat cushion back pad and disconnect the electrical connector if replacing the pad.

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement .
Remove the rear seat back cushion. Refer to Rear Seat Back Cushion Replacement .
Remove the rear seat head restraints, if equipped. Refer to Rear Seat Head Restraint Replacement .
Remove the rear seat armrest. Refer to Rear Seat Armrest Replacement .

Rear Seat Back Cushion Cover
Tip: Remove the J-hooks that secure the cover to the frame.

Rear Seat Back Cushion Pad
Tip: Peel the heater elements from the seat cushion back pad and disconnect the electrical connector if replacing the pad.
