Rear Seat Cushion Replacement

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

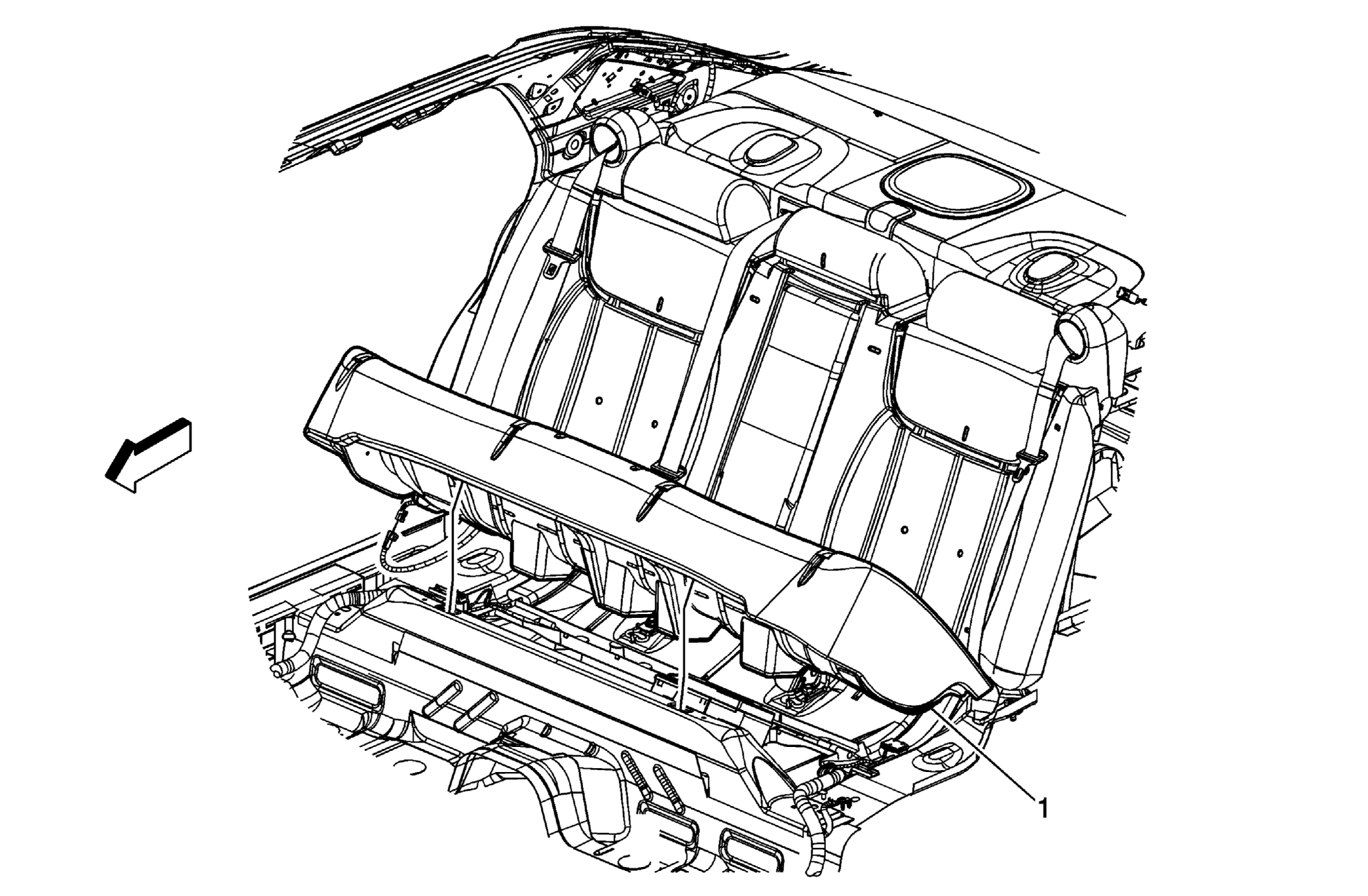

Fig 1: Seat Cushion Replacement - Rear
GM1572099Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Cushion, Rear Seat
Tip:
  1. Lift up on the front of the seat cushion and pull up and out to remove.
  2. Disconnect the electrical connector.
