Rear Seat Back Cushion Replacement

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

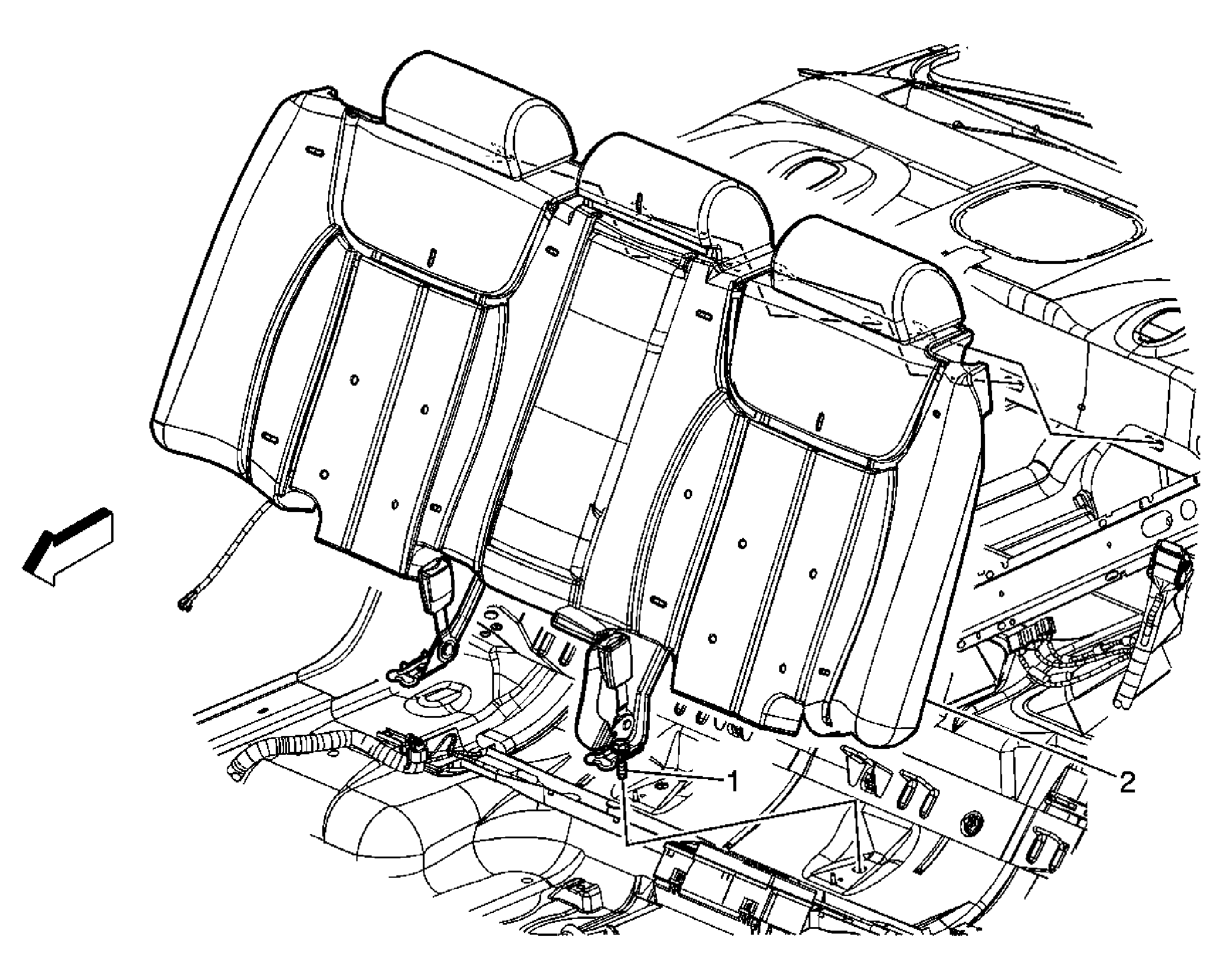

Fig 1: Seat Back Replacement - Rear

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement .
1	Rear Seat Back Cushion Bolt CAUTION: Refer to Fastener Caution . Tighten: 45 N.m (33 lb ft)
2	Rear Seat Back Cushion Procedure Insert a flat-bladed tool between the top of the rear seat back and the rear shelf. Push the flat-bladed tool down to release the four retainers in order to remove the rear seat back. Disconnect the electrical connectors, if equipped.

Callout

Component Name

Preliminary Procedure:
Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement .

Rear Seat Back Cushion Bolt

CAUTION: Refer to Fastener Caution .

Tighten: 45 N.m (33 lb ft)

Rear Seat Back Cushion

Procedure

Insert a flat-bladed tool between the top of the rear seat back and the rear shelf.
Push the flat-bladed tool down to release the four retainers in order to remove the rear seat back.
Disconnect the electrical connectors, if equipped.
