Rear Seat Head Restraint Replacement

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

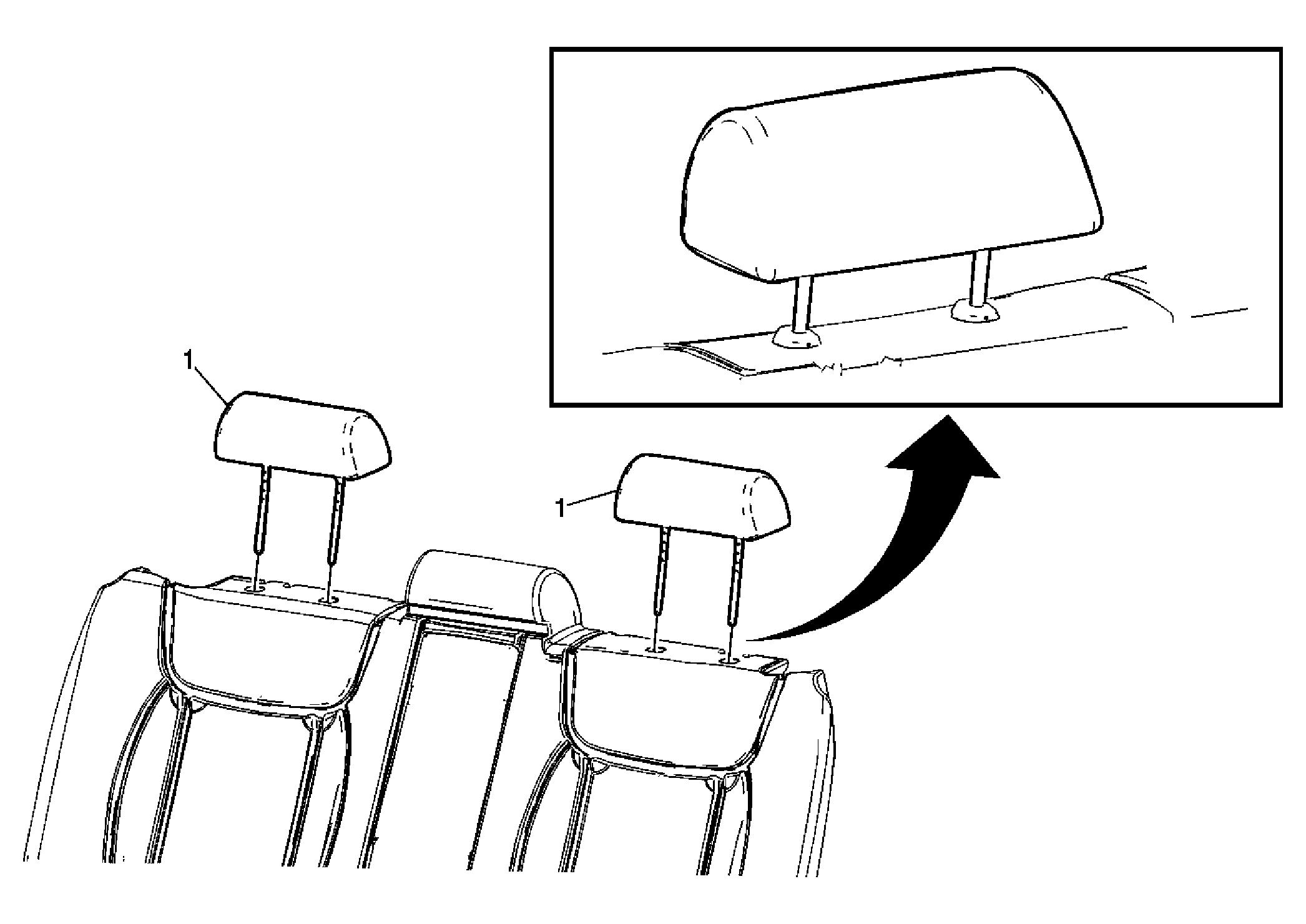

Fig 1: Head Restraint Replacement - Rear Seat

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Rear Seat Head Restraint (Qty: 2) Tip: Release the J-hooks on the seat back cover to access head restraint release mechanism. Depress the button on the inboard head restraint guide to raise the head restraint to the full up position. Use a J 42214 Headrest Removal Tool, or equivalent to aid in the removal of the head restraint.
