Installation Procedure

IMPORTANT: Ensure the shift control cable is routed exactly as originally positioned in the vehicle to avoid coming into contact with potential hazards such as hot, sharp, and moving objects.

Fig 1: View Of Selector Cable Grommet

Courtesy of GENERAL MOTORS CORP.

Secure the shift control cable grommet by pressing the cable into the pass-thru hole in the cowl.
Ensure that the shift control range select lever is in the park (P) position.

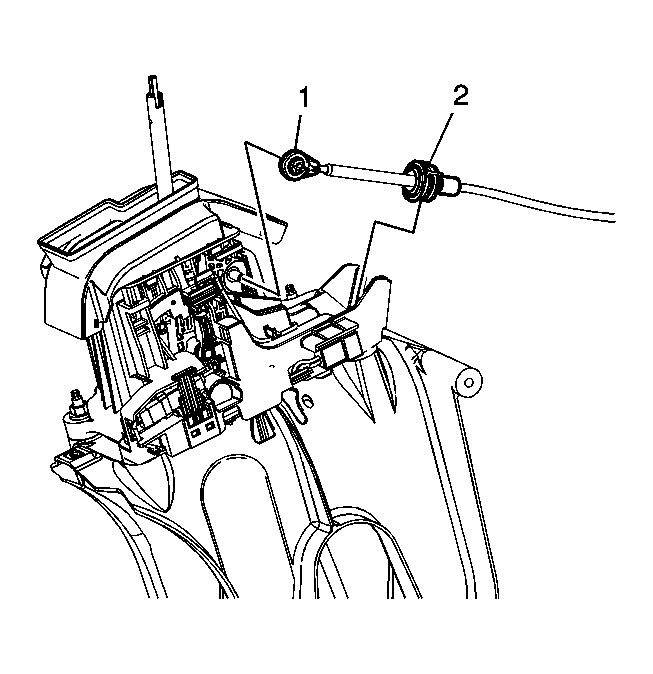

Fig 2: Identifying Shift Control Cable

Courtesy of GENERAL MOTORS CORP.

Install the shift control cable (2) to the shift control.
Install the shift control cable (1) onto the shift control range select lever pin.
Install the right side console trim panel. Refer to Front Floor Console Side Trim Panel Replacement - Right Side .
Install the console trim plate. Refer to Console Trim Plate Replacement .
Install the center trim bezel. Refer to Instrument Panel Accessory Bezel Replacement .
Install the shift control lever knob. Refer to Transmission Control Lever Knob Replacement .

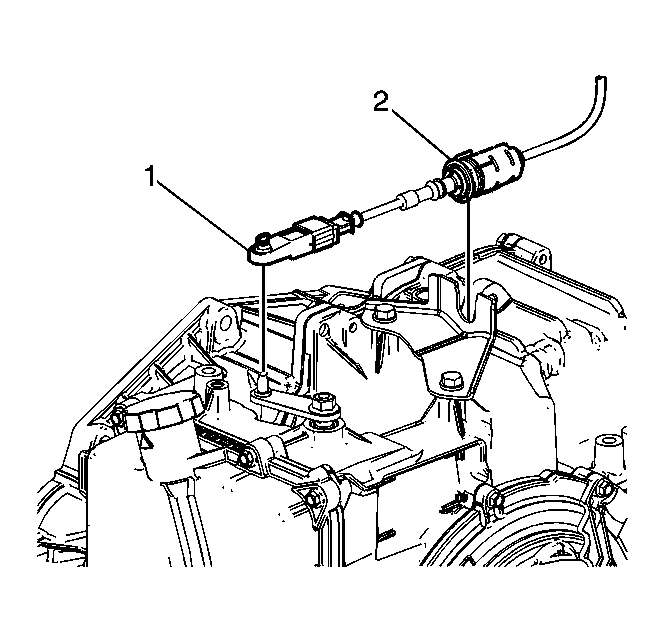

Fig 3: Identifying Range Selector Cable & Shift Control Cable

Courtesy of GENERAL MOTORS CORP.

Install the shift control cable (2) to the range selector cable bracket. Ensure the range selector cable retaining tabs fully engage the range selector cable bracket.
Connect the range selector cable (1) to the transmission range selector lever.
Adjust the range selector cable. Refer to Shift Control Cable Adjustment .
Release the parking brake.
