Front Floor Console Side Trim Panel Replacement - Right Side

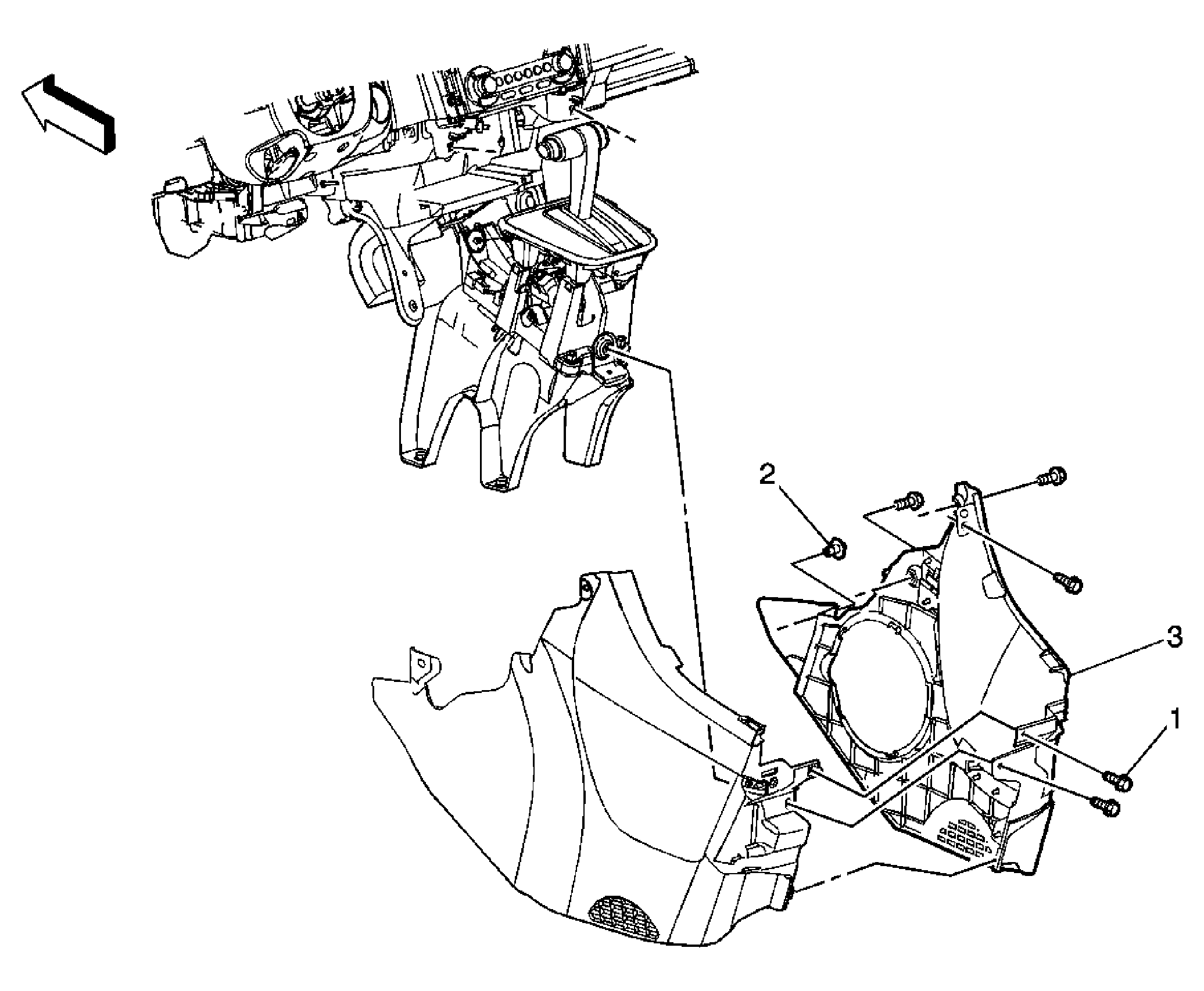

Fig 1: Identifying Right Side Front Floor Console Side Trim Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the console trim plate. Refer to Console Trim Plate Replacement .
1	Front Floor Front Console Side Trim Panel Screw (Qty: 8) NOTE: Refer to Fastener Notice . Tighten:  2.5 N.m (22 lb in)
2	Front Floor Front Console Side Trim Panel Push-in Retainer (Qty: 2)
3	Front Floor Front Console Side Trim Panel Right
