Transmission Control Lever Knob Replacement

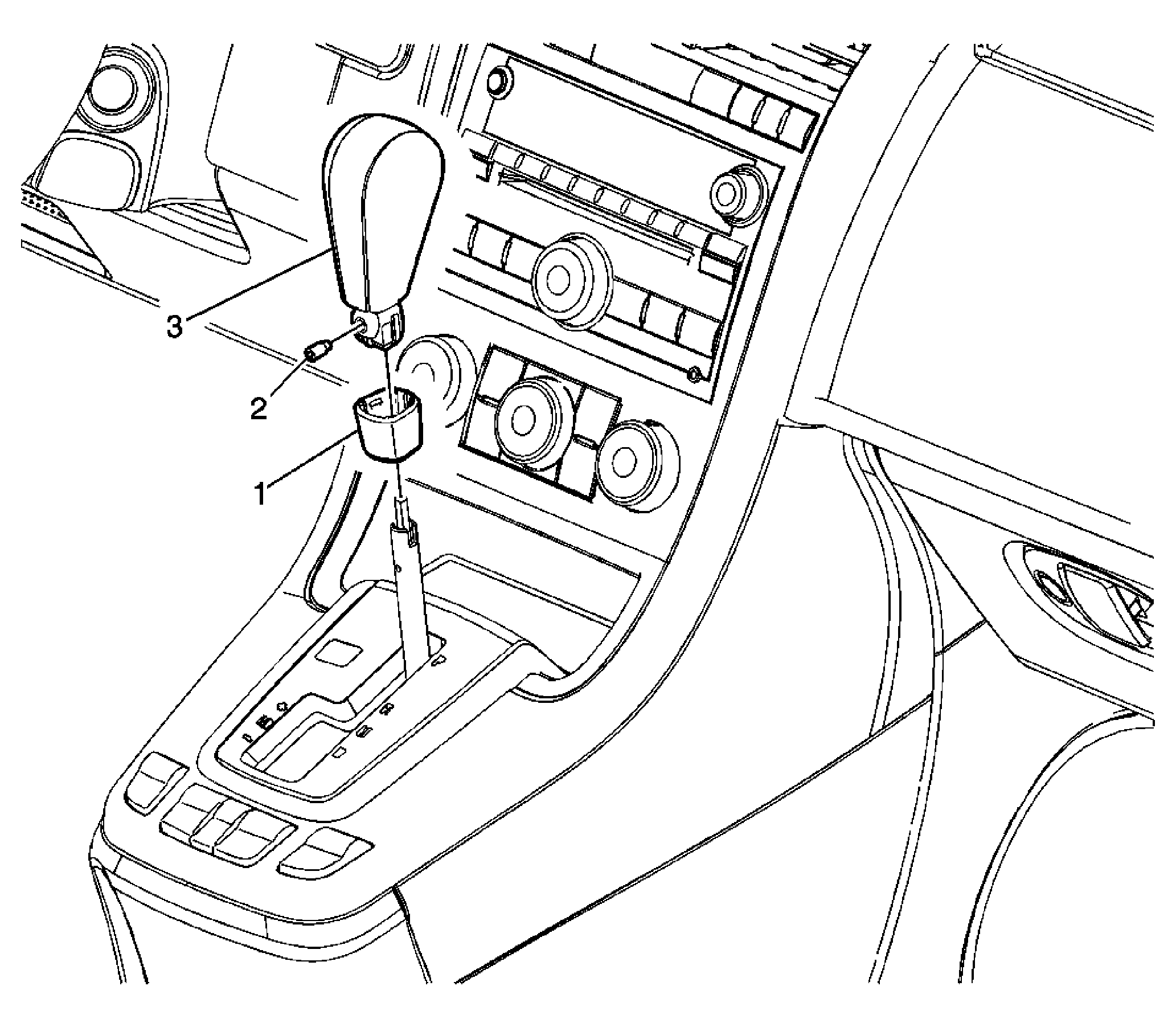

Fig 1: Identifying Transmission Control Lever Knob

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Shift Control Knob Bezel Tip: Removal: carefully insert a small flat-bladed tool between the bezel (1) and the shift knob (3). Apply careful downward pressure to the bezel to separate the bezel from the shift knob. The bezel will drop down approximately 13.0 mm (0.5 in) exposing the shift knob screw (2). Installation: Lift the bezel (1) up to the shift knob (3) until a click sound is heard indicating the bezel is secured to the shift knob.
2	Shift Control Knob Screw NOTE: Refer to Fastener Notice . Tip: Loosen the shift control knob screw approximately 4-5 turns. It is not necessary to fully remove the screw from the shift control knob. Tighten: Tighten the screw to 1.5 N.m (13 lb in).
3	Shift Control Knob
