Console Trim Plate Replacement

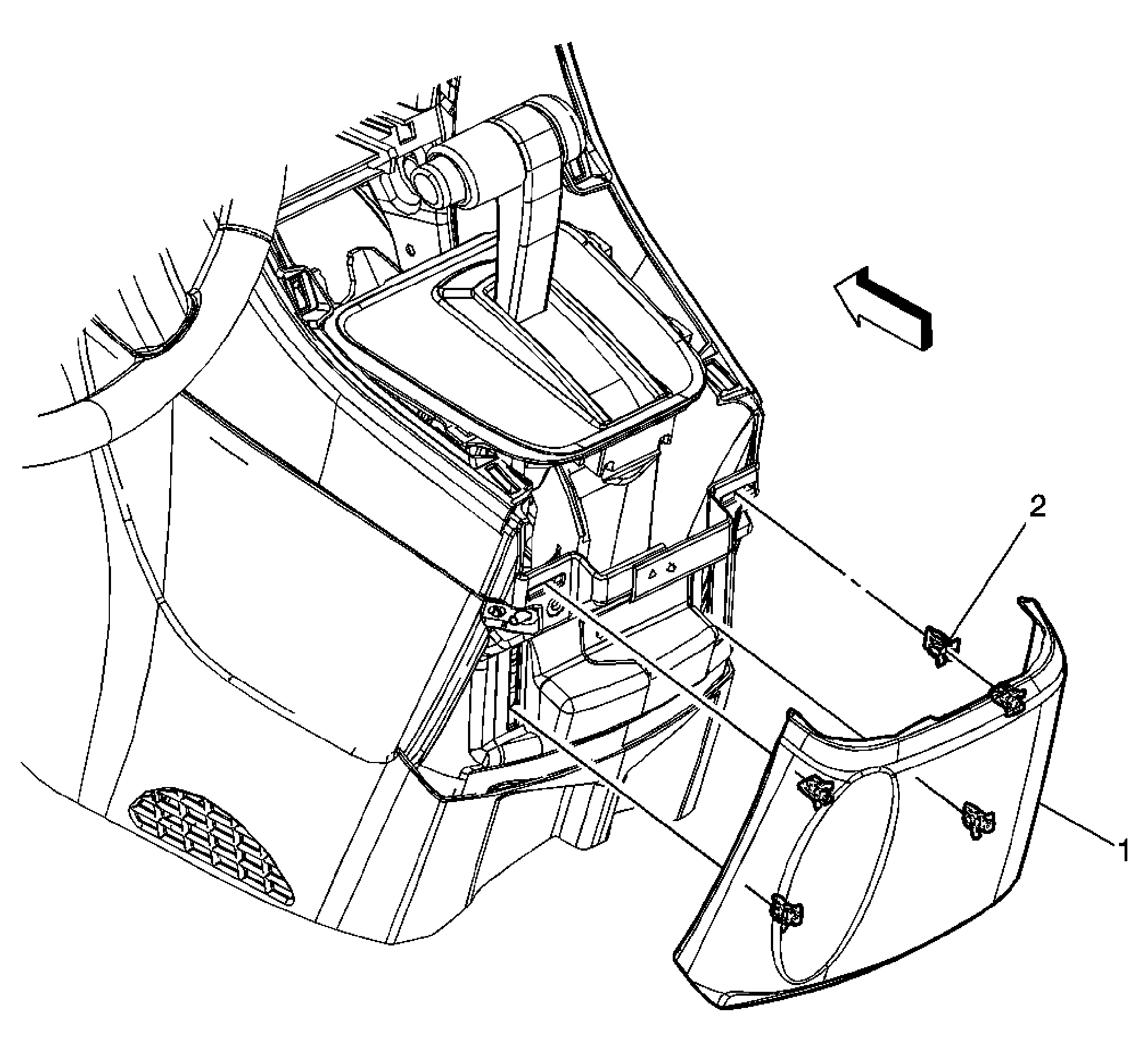

Fig 1: View Of Console Trim Plate

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Front Floor Front Console Rear Trim Panel Tip: Pull rearward to disengage the retainer clips.
2	Front Floor Front Console Rear Trim Panel Retainer Clip (Qty: 4)
