Instrument Panel Lower Trim Panel Replacement - Left Side

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

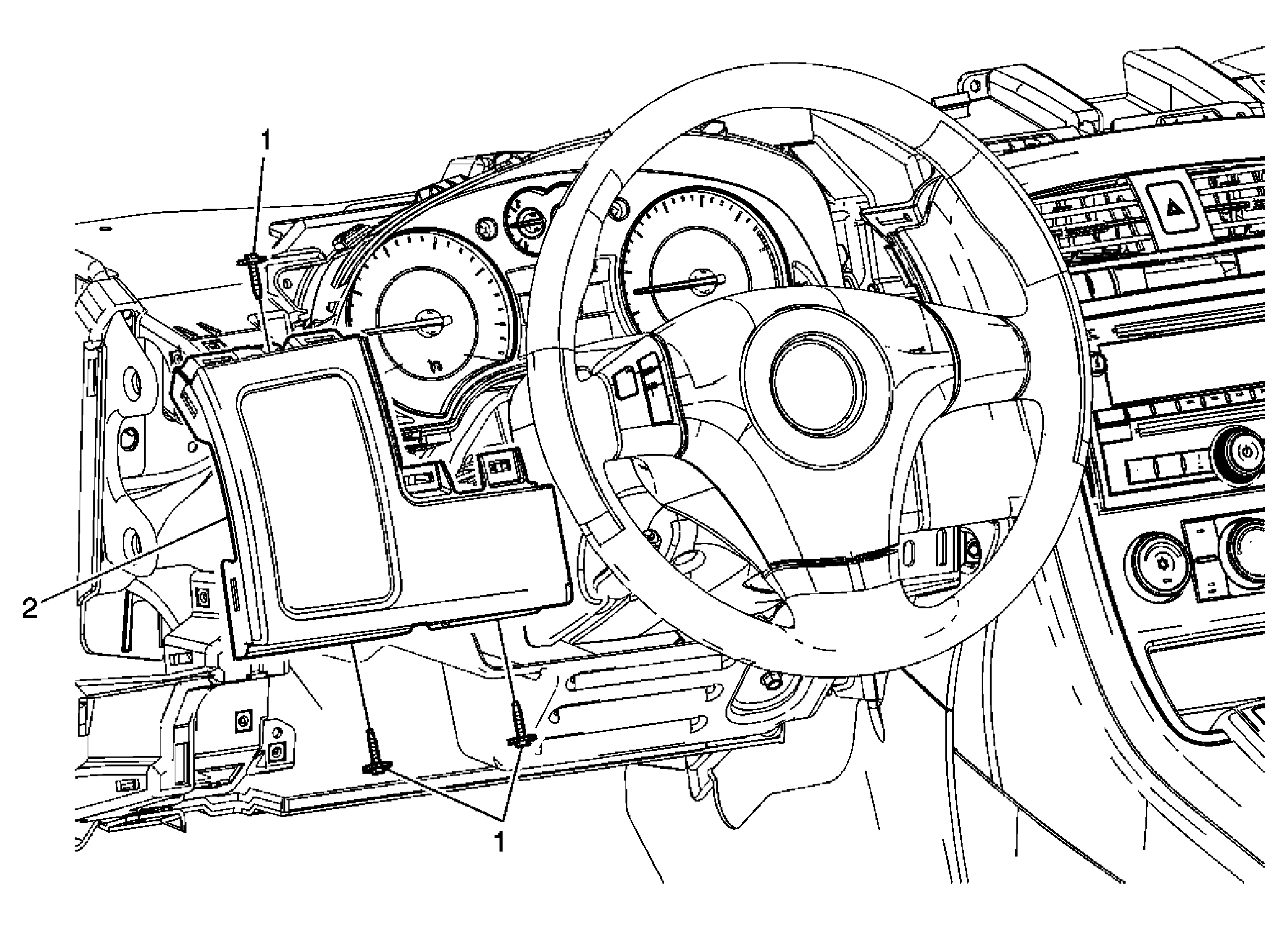

Fig 1: View Of Left Side Instrument Panel Lower Trim Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the instrument panel upper trim pad. Refer to Instrument Panel Upper Trim Panel Replacement . Remove the left instrument panel end cap. Refer to Instrument Panel Outer Trim Cover Replacement - Left Side . Remove the instrument panel cluster trim plate. Refer to Instrument Cluster Trim Panel Replacement . Remove the knee bolster. Refer to Knee Bolster Replacement . Remove the left instrument panel air outlet assembly. Refer to Instrument Panel Outer Air Outlet Replacement - Left Side .
1	Instrument Panel Lower Trim Panel Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten: 2.5 N.m (22 lb in)
2	Instrument Panel Lower Trim Panel Left

Callout

Component Name

Preliminary Procedures

Remove the instrument panel upper trim pad. Refer to Instrument Panel Upper Trim Panel Replacement .
Remove the left instrument panel end cap. Refer to Instrument Panel Outer Trim Cover Replacement - Left Side .
Remove the instrument panel cluster trim plate. Refer to Instrument Cluster Trim Panel Replacement .
Remove the knee bolster. Refer to Knee Bolster Replacement .
Remove the left instrument panel air outlet assembly. Refer to Instrument Panel Outer Air Outlet Replacement - Left Side .

Instrument Panel Lower Trim Panel Screw (Qty: 3)

CAUTION: Refer to Fastener Caution .

Tighten: 2.5 N.m (22 lb in)

Instrument Panel Lower Trim Panel Left
