Knee Bolster Replacement
WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

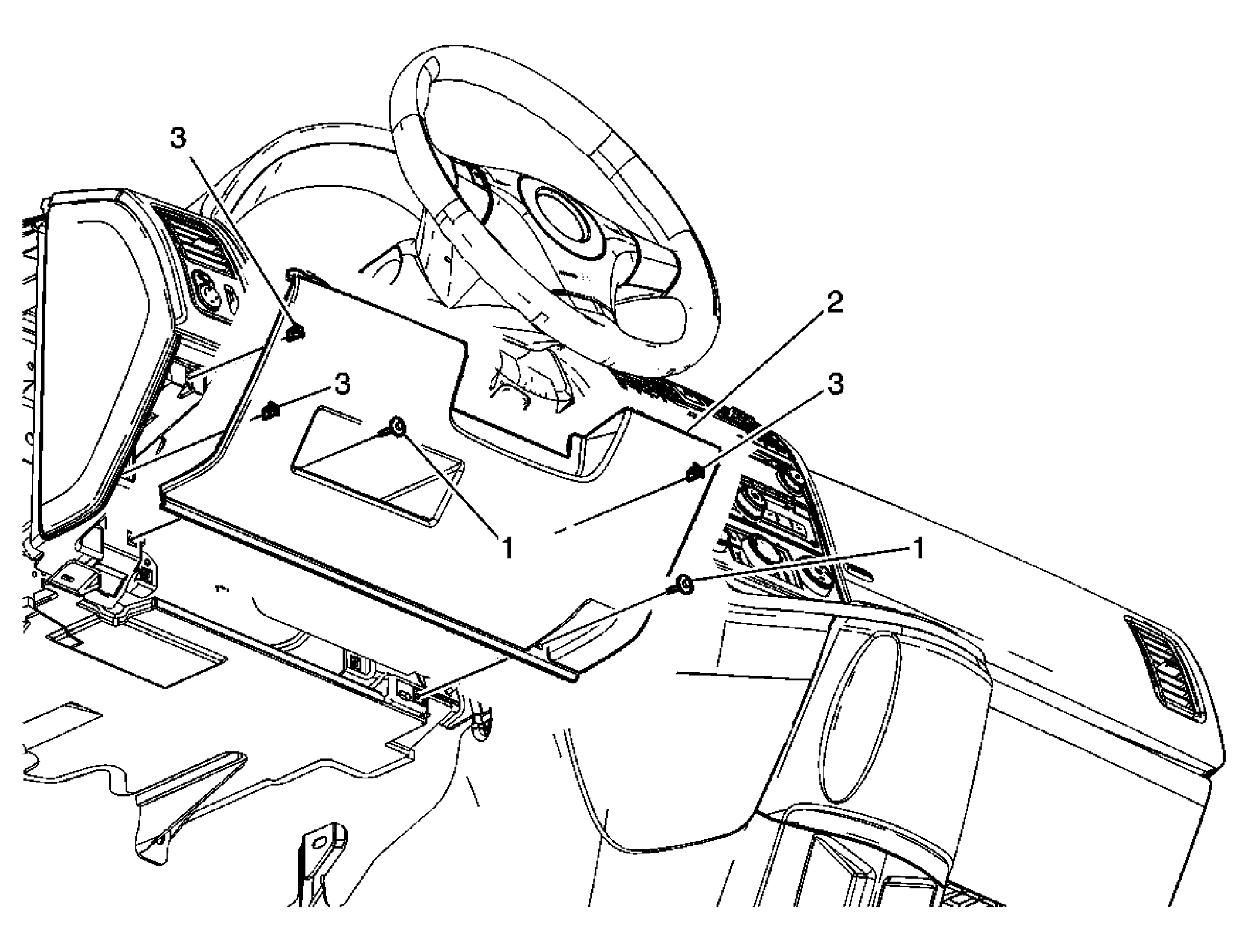

| Callout | Component Name |
|---|---|
| 1 | Instrument Panel Knee Bolster Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2 N.m (18 lb in) |
| 2 | Instrument Panel Knee Bolster |
| 3 | Instrujment Panel Knee Bolster Retainer Clip (Qty: 3) |
