Instrument Panel Outer Air Outlet Replacement - Left Side
WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

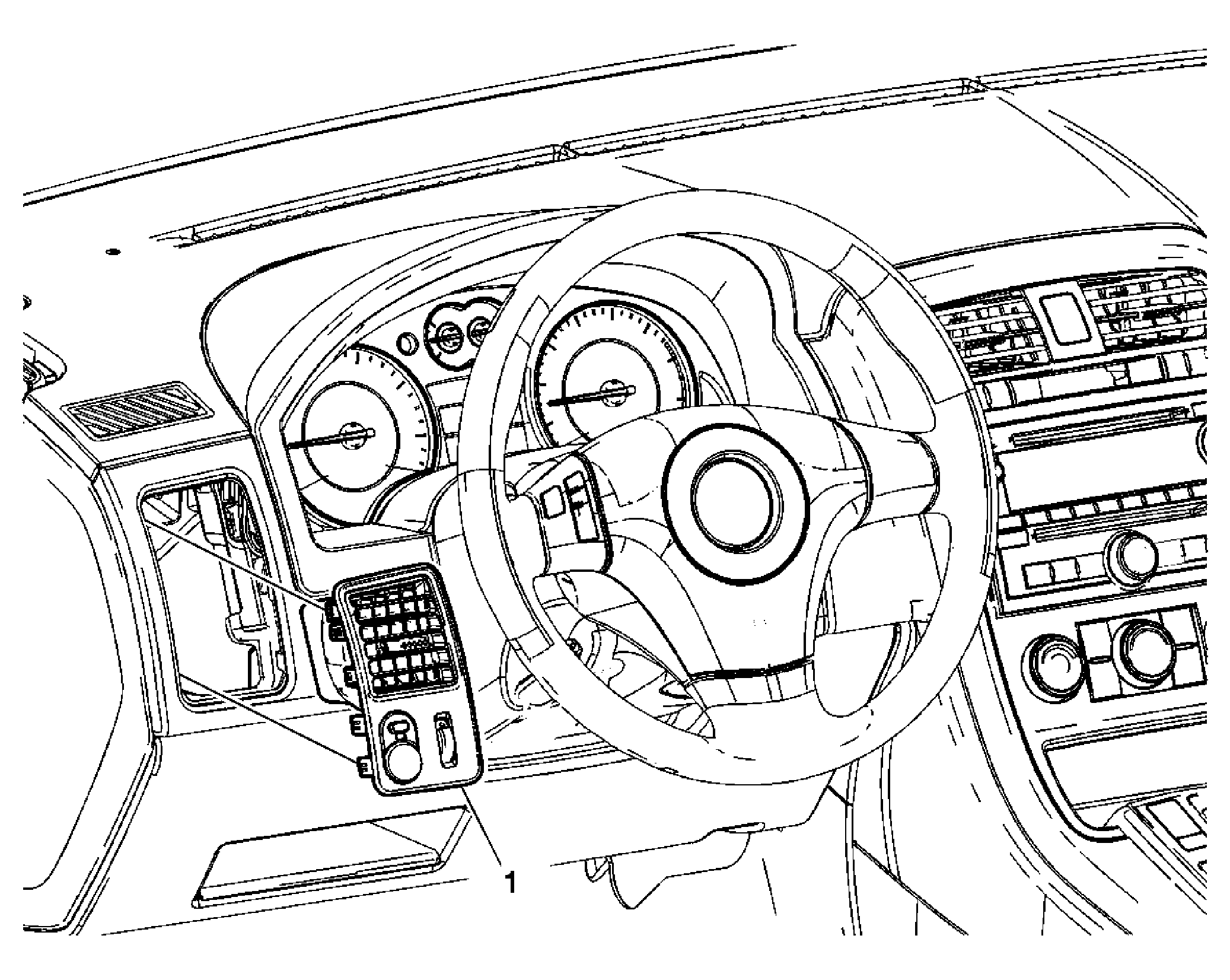

Fig 1: View Of Left Side Instrument Panel Outer Air Outlet
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Instrument Panel Air Outlet Assembly
Procedure
Carefully pry out the outlet assembly using a nylon flat-bladed tool.
