Rear Seat Back Cushion Cover and Pad Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

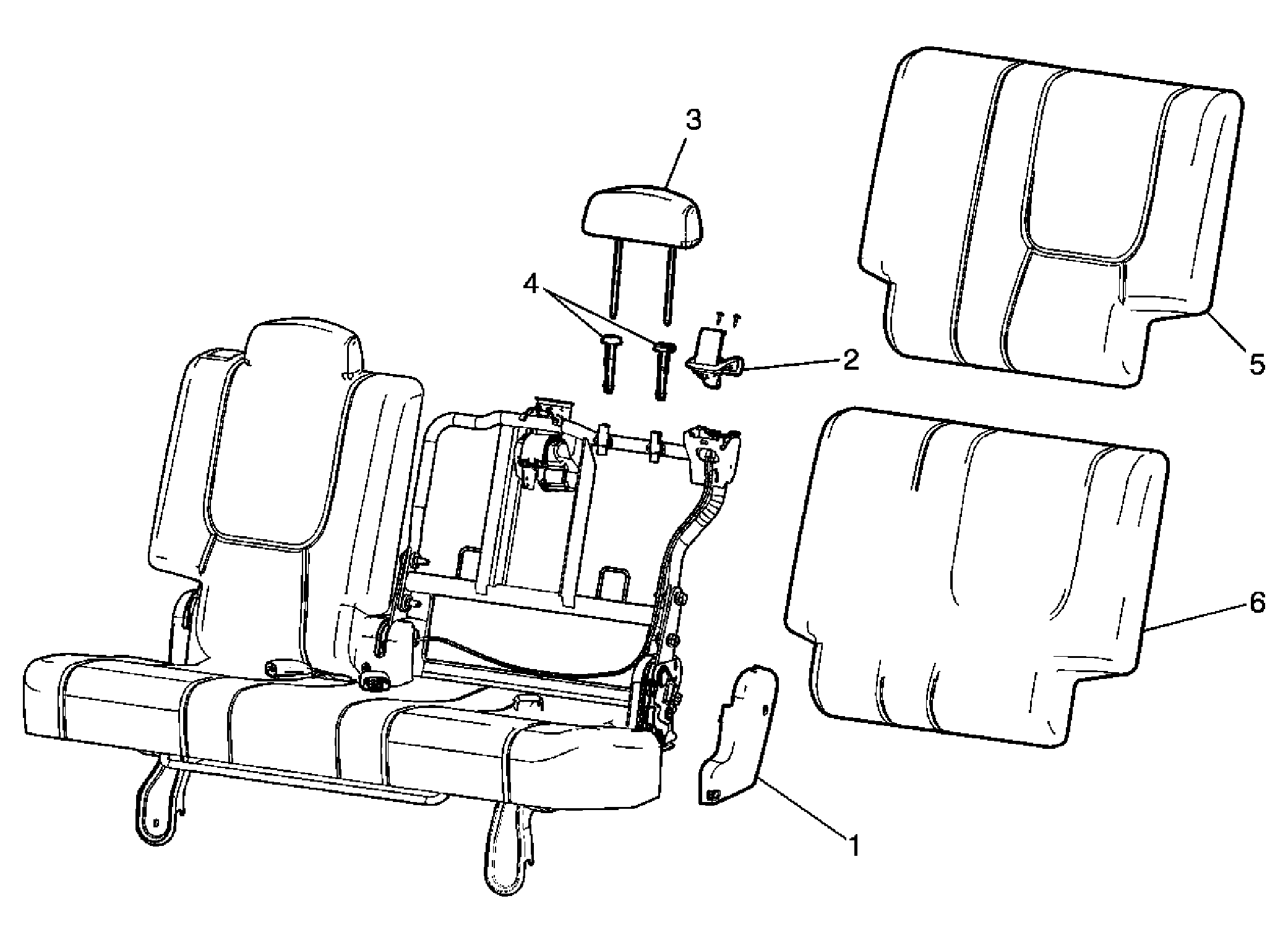

Fig 1: View Of Rear Seat Back Cushion Cover & Pad

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the rear seat. Refer to Rear Seat Replacement . Remove the rear seat back finish panel. Refer to Rear Seat Back Cushion Trim Panel Replacement .
1	Rear Seat Cushion Finish Panel Refer to Rear Seat Cushion Trim Panel Replacement .
2	Rear Seat Back Cushion Release Handle Refer to Rear Seat Latch Release Handle Replacement .
3	Rear Seat Head Restraint Refer to Rear Seat Head Restraint Replacement .
4	Rear Seat Head Restraint Guides Refer to Rear Seat Head Restraint Guide Replacement .
5	Rear Seat Back Cushion Cover Tip: Remove the shoulder belt bezel from the rear seat back. Slide the bezel outboard away from the seat back. Remove the shoulder belt fastener and remove the shoulder belt from the cushion. Release the seat back cover by disengaging the bottom J-strip. Lift the seat back trim cover off of the rear seat back frame. Feed the seat belt webbing and the escutcheon through the trim cover.
6	Rear Seat Back Cushion Pad
