Rear Seat Cushion Trim Panel Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

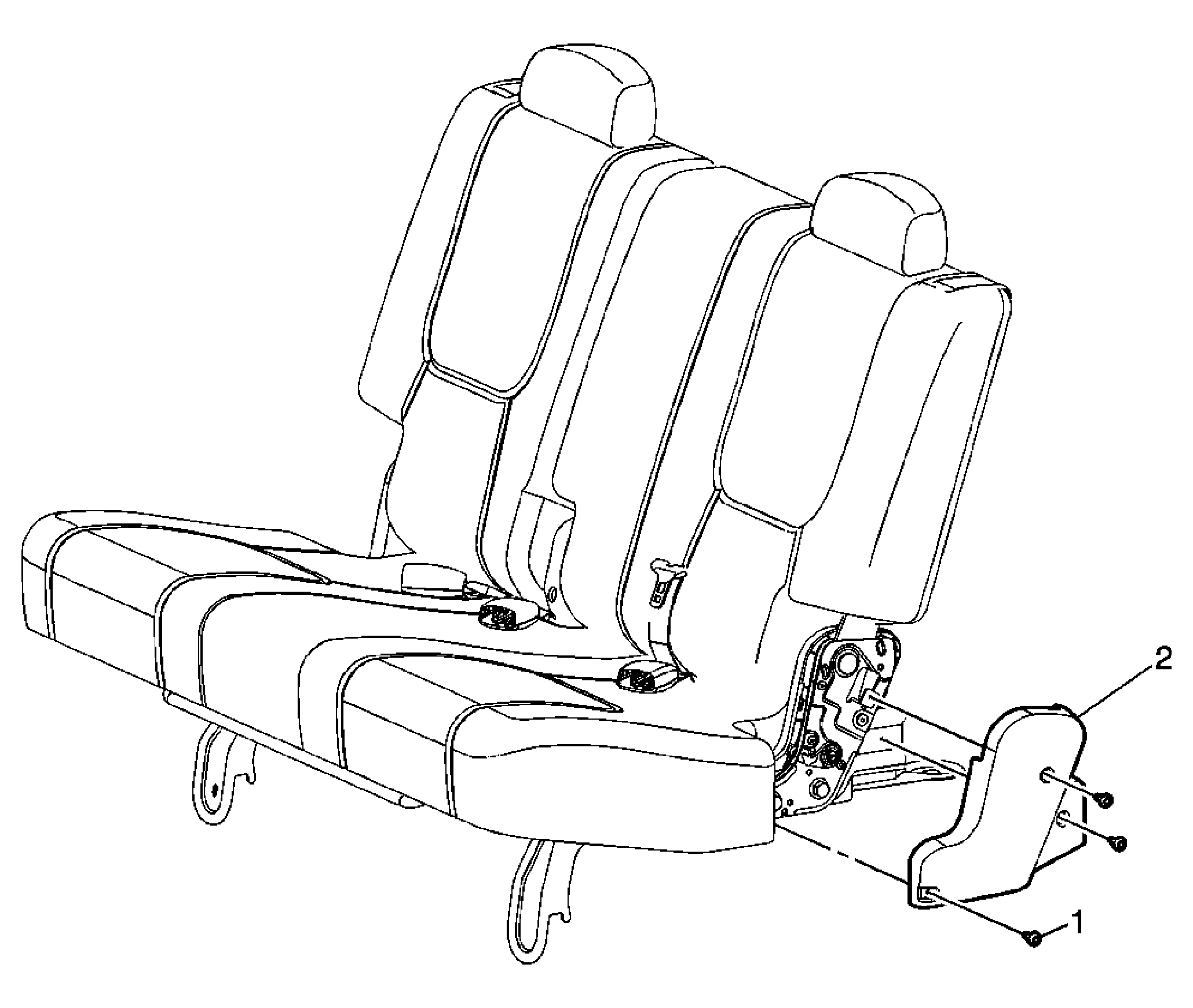

Fig 1: View Of Rear Seat Cushion Trim Panel
GM1712289Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Seat Cushion Finish Panel Screw (Qty: 3)
CAUTION: Refer to Fastener Caution .

Tighten:  2 N.m (18 lb in)
2 Rear Seat Cushion Finish Panel
