Rear Seat Head Restraint Guide Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

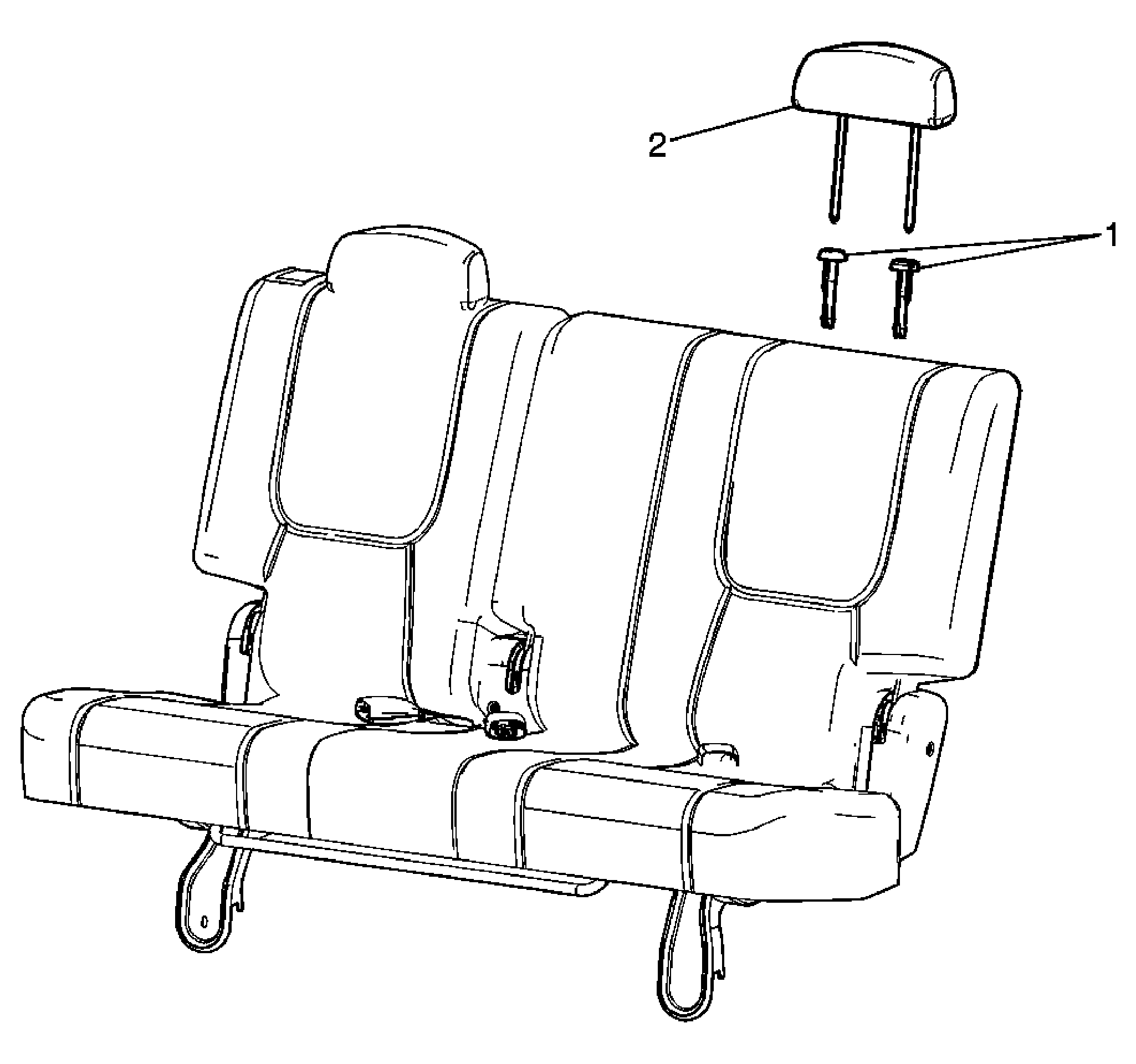

Fig 1: View Of Rear Seat Head Restraint Guide
GM1711361Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
Preliminary Procedure:
Remove the rear seat back cushion finish panel. Refer to Rear Seat Back Cushion Trim Panel Replacement .
1 Rear Seat Head Restraint
Tip:
  1. Push the button in and raise the head restraint to the full-up position.
  2. Insert a small round tool into the guide hole
  3. Pull up to remove the head restraint.
2 Front Seat Head Restraint Guides
Tip:  Squeeze the bottom of the guides together and push upward to remove.
