Rear Seat Latch Release Handle Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

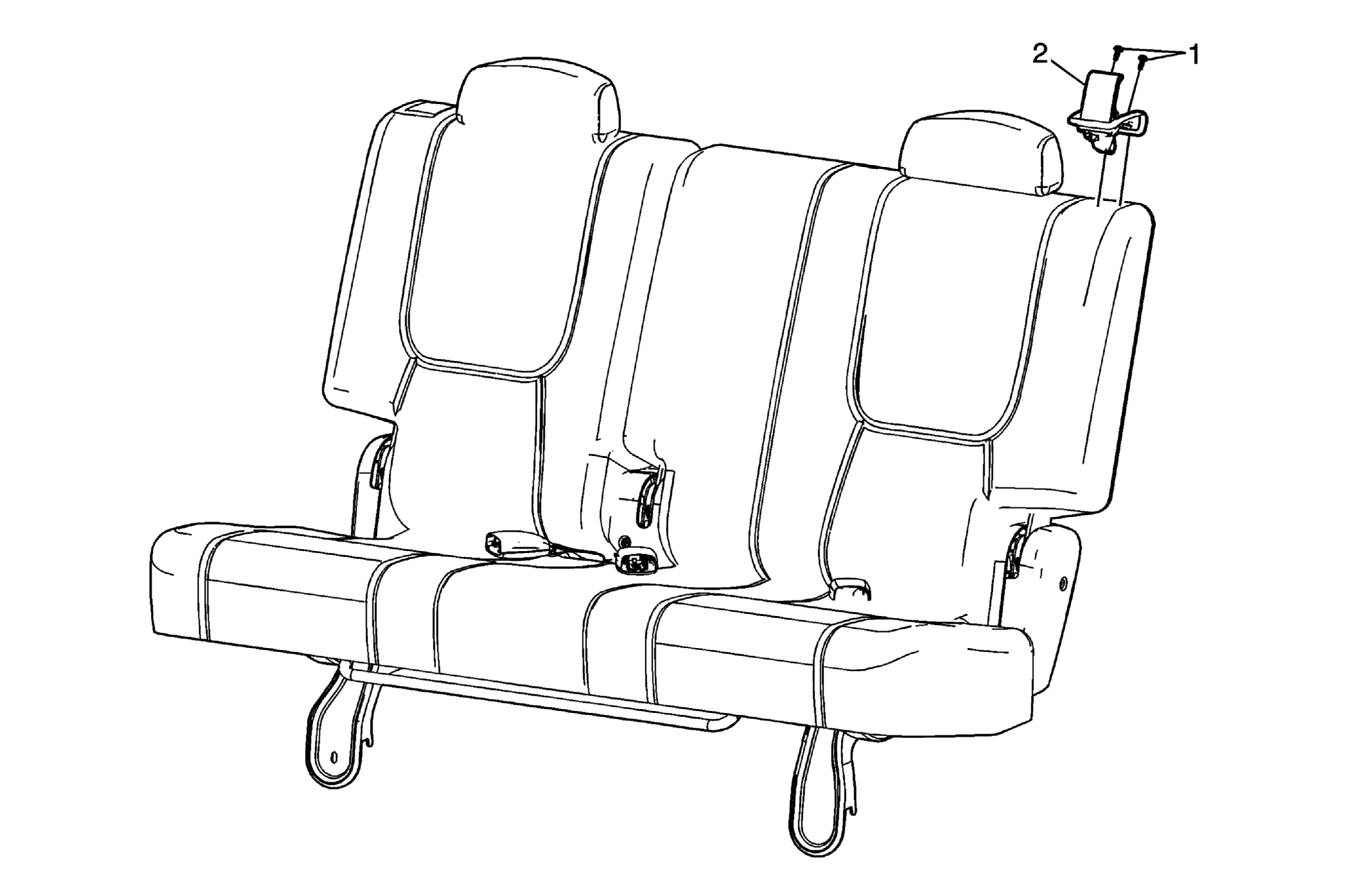

Fig 1: View Of Rear Seat Latch Release Handle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Seat Back Cushion Latch Release Handle Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tip: Lift up the handle to access the screws. Tighten: 2.5 N.m (22 lb ft)
2	Rear Seat Back Cushion Latch Release Handle Tip: Disconnect the latch release cable from the handle.
