Rear Seat Back Cushion Trim Panel Replacement
WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

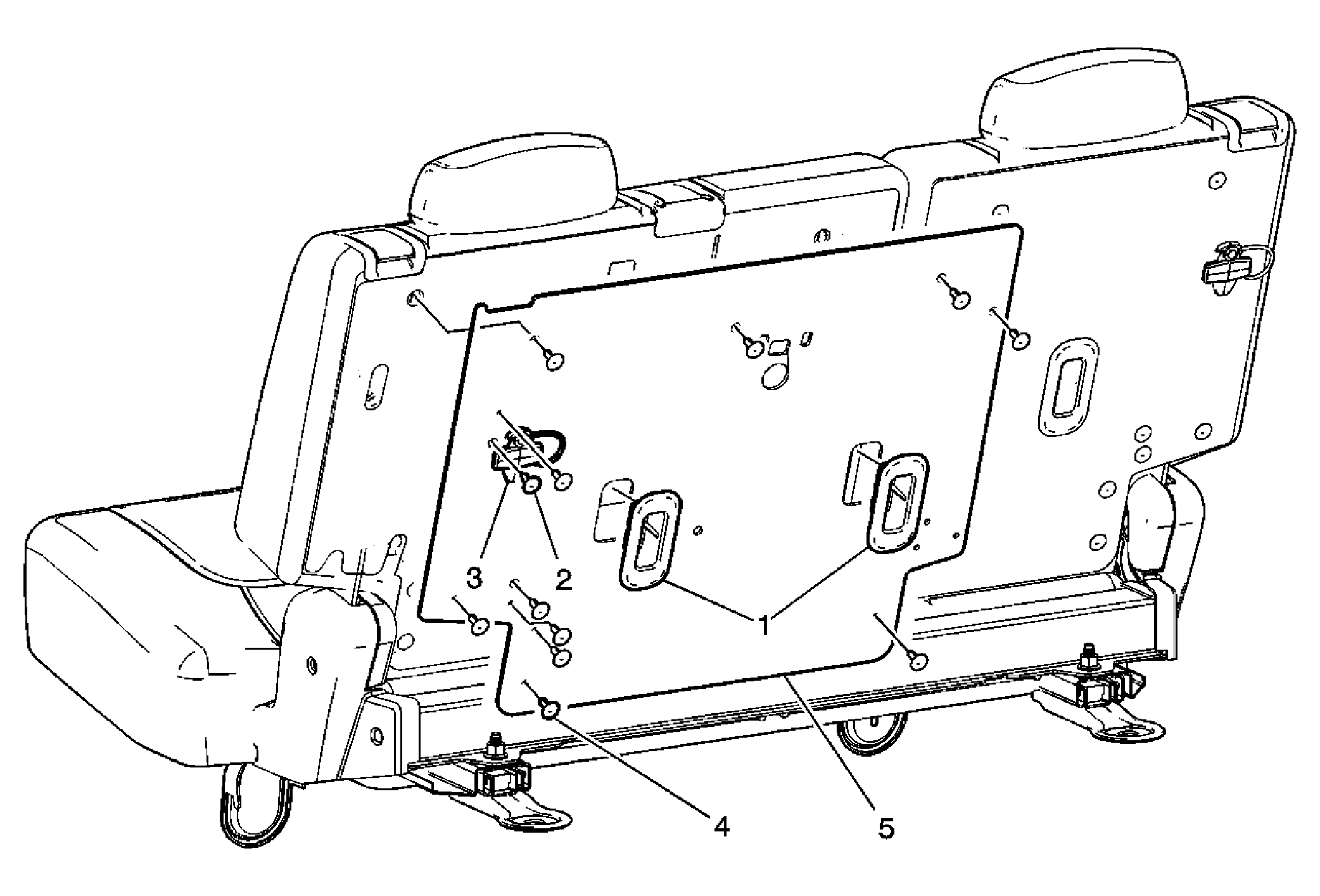

| Callout | Component Name |
|---|---|
| Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . | |
| 1 | Rear Seat Anchor Plate Bezel (Qty: 2) |
| 2 | Child Seat Restraint System Belt Guide Retainer |
| 3 | Child Seat Restraint System Belt Guide |
| 4 | Rear Seat Back Cushion Panel Retainer (Qty: 13) |
| 5 | Rear Seat Back Cushion Panel |
