Front Seat Cushion Frame Replacement

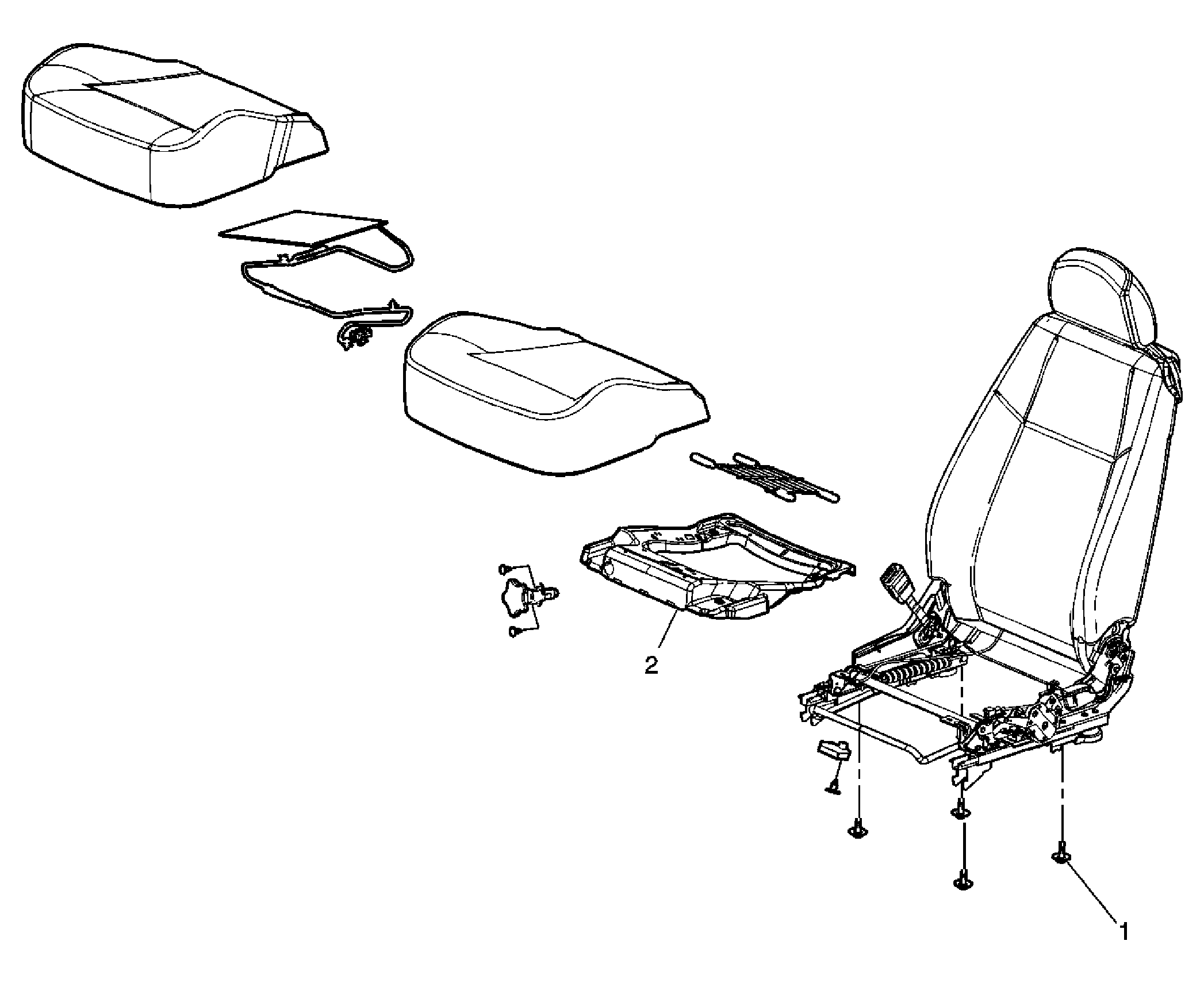

Fig 1: Identifying Front Seat Cushion Frame
GM1538064Courtesy of GENERAL MOTORS CORP.
Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .

Preliminary Procedures

  1. Remove the front seat. Refer to Front Seat Replacement - Bucket .
  2. Remove the seat cushion inner trim cover. Refer to Seat Cushion Inner Trim Panel Replacement .
  3. Remove the seat cushion outer trim cover. Refer to Front Seat Cushion Outer Trim Panel Replacement .
  4. Remove the front seat cushion cover and pad. Refer to Front Seat Cushion Cover and Pad Replacement .
  5. Re-zero the inflatable restraint passenger presence system whenever the seat cushion or any component of the passenger presence system is removed. Refer to Passenger Presence System Programming and Setup .
1 Screw, Seat Cushion Assembly (Qty: 4)

Tighten:  25 N.m (18 lb ft)
2 Frame Assembly, Seat Cushion
Tip:
  • Remove the lumbar adjuster screws.
  • Disconnect the cushion heater electrical connector.
