Front Seat Replacement - Bucket

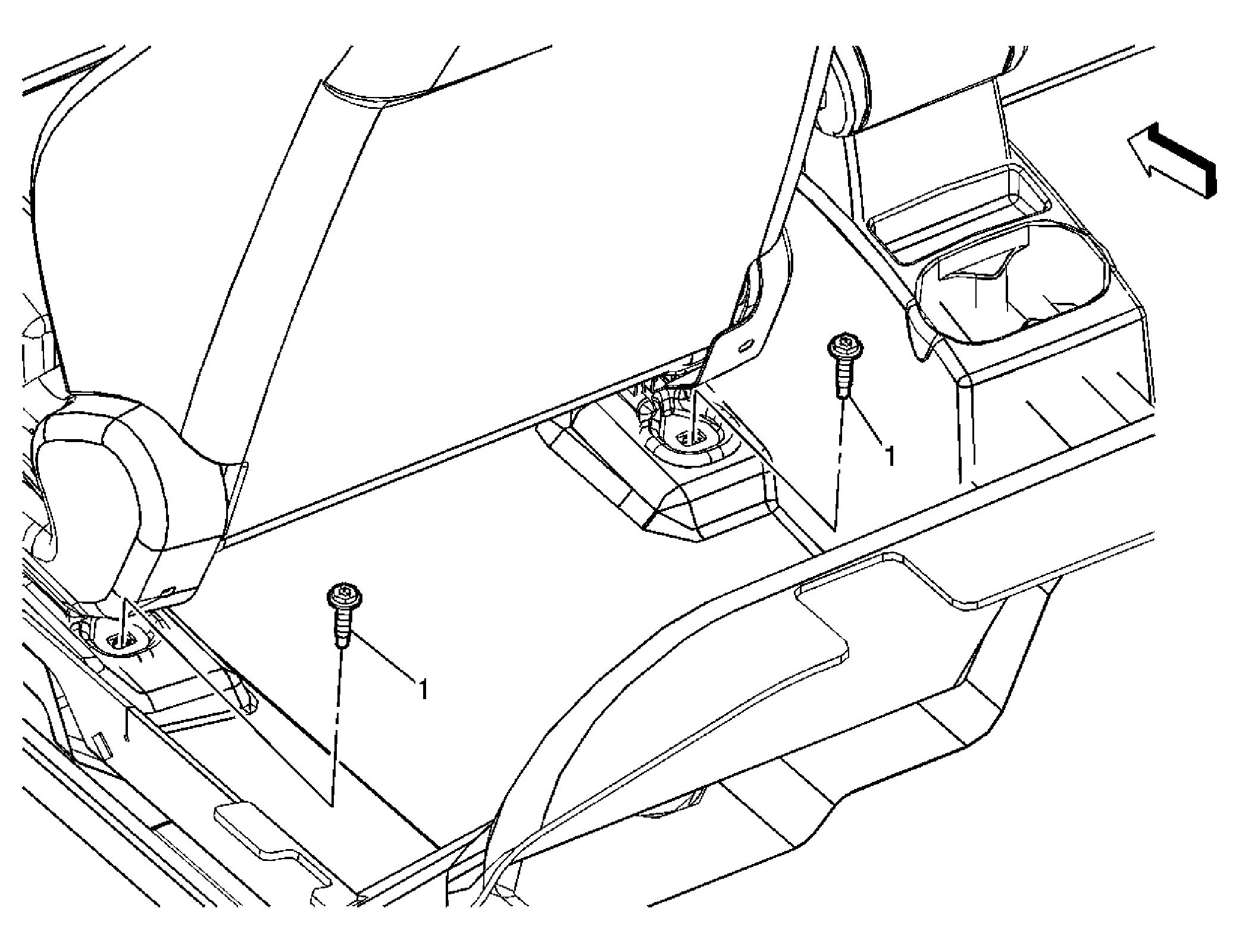

Fig 1: Identifying Front Bucket Seat & Mounting Bolts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Bolt, Front Seat Assembly Tip: Remove the bolt. Disconnect the electrical connectors. Tilt seat forward to release front of the seat tracks. Tighten: 30 N.m (22 lb ft)

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Bolt, Front Seat Assembly
Tip:

Tighten: 30 N.m (22 lb ft)
