Front Seat Cushion Cover and Pad Replacement

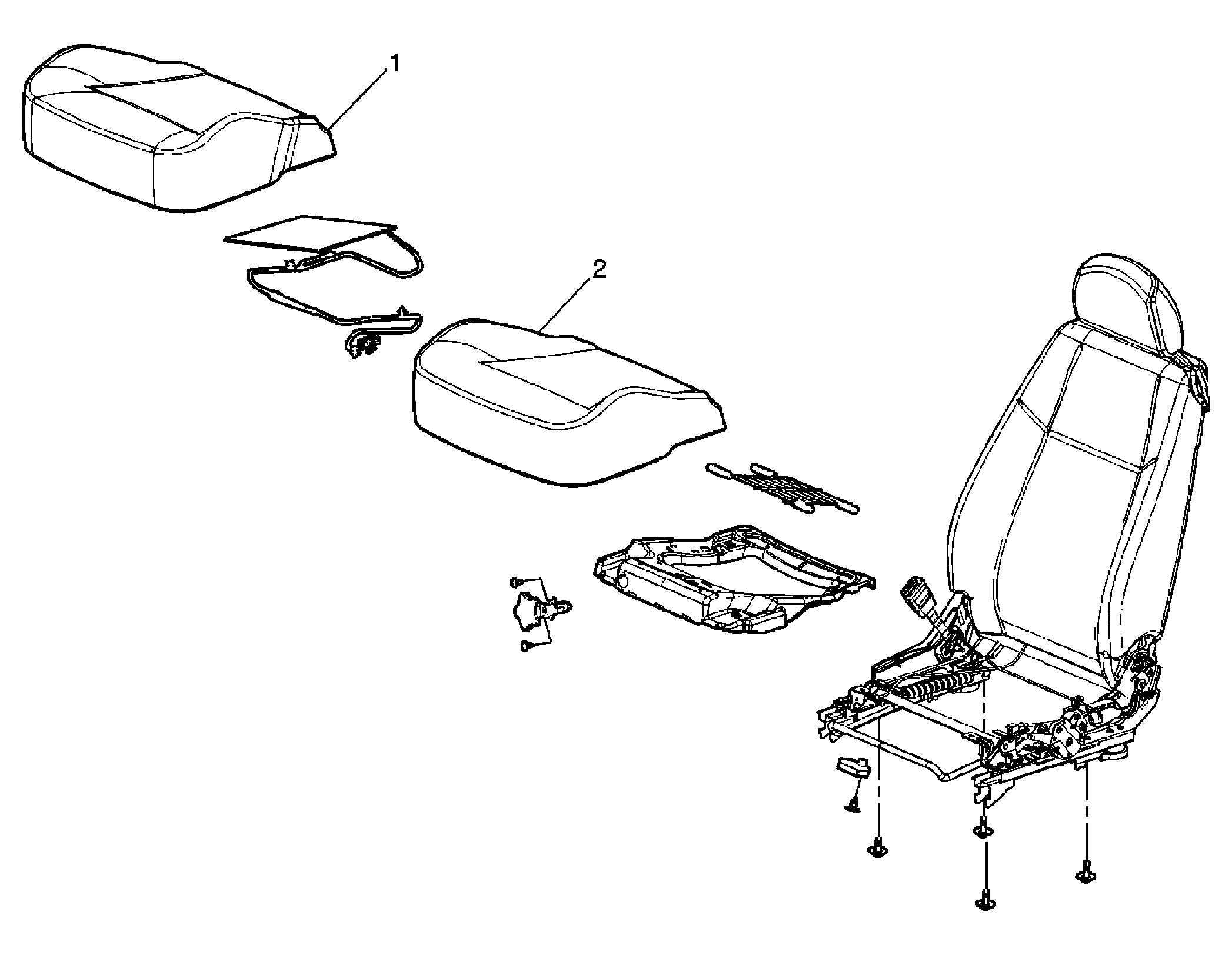

Fig 1: Identifying Seat Cushion Cover and Pad -- Front
GM1551234Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .

Preliminary Procedures

  1. Remove the front seat. Refer to Front Seat Replacement - Bucket .
  2. Remove the seat cushion frame. Refer to Front Seat Cushion Frame Replacement .
  3. Re-zero the inflatable restraint passenger presence system whenever the seat cushion or any component of the passenger presence system is removed. Refer to Passenger Presence System Programming and Setup .
1 Cover, Seat Cushion
Tip:
  1. Disconnect the seat cushion cover J-channel from the seat cushion frame.
  2. Disconnect the electrical connectors.
2 Pad, Seat Cushion
Tip:  The inflatable restraint passenger presence system is part of the seat cushion pad on the passenger seat, and must be replaced as an assembly.
