Front Seat Cushion Outer Trim Panel Replacement

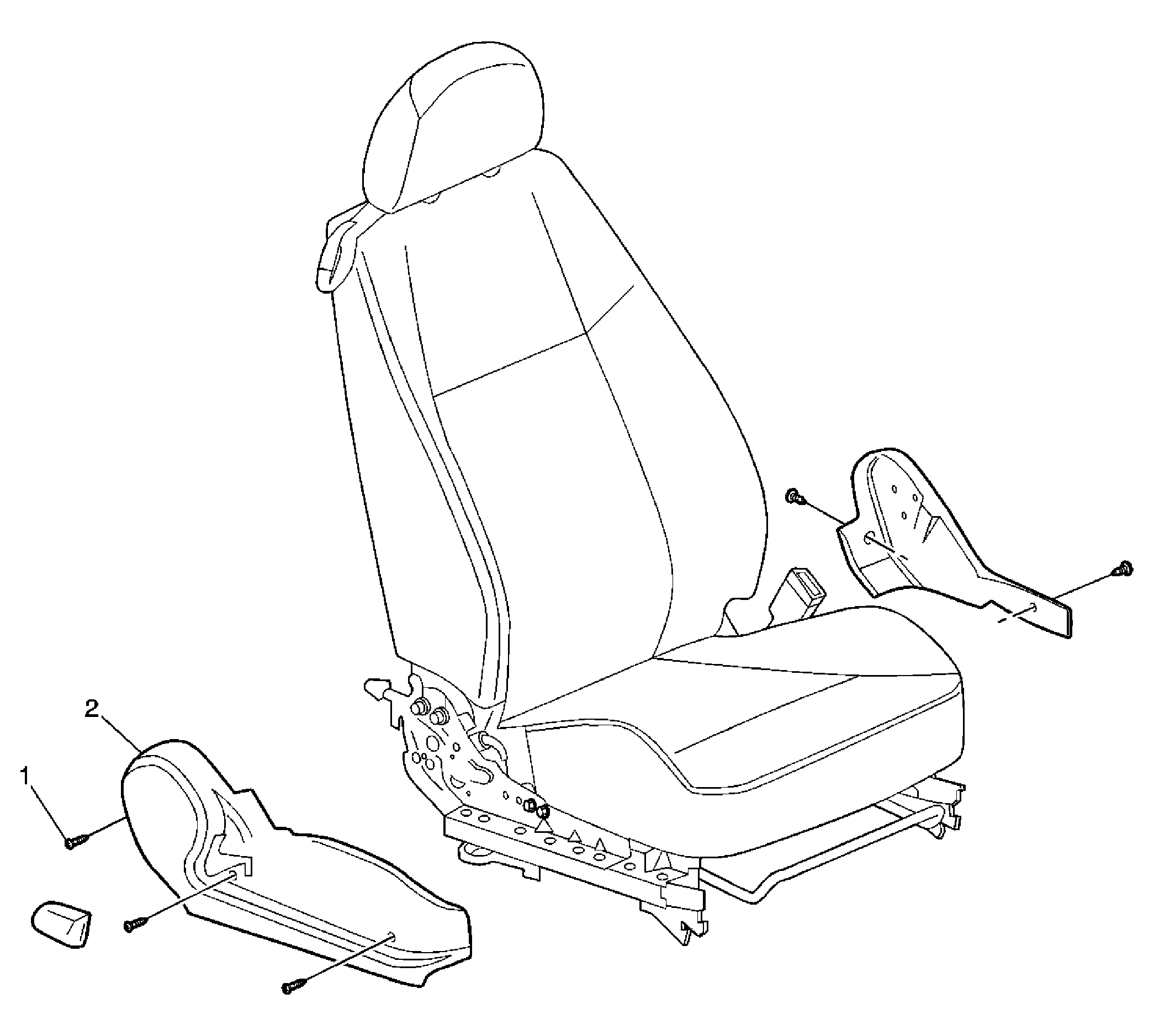

Fig 1: Identifying Seat Cushion Outer Trim Panel -- Front Seat
GM1551134Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Outer Seat Cushion Cover Assembly Screw (Qty: 3)
NOTE: Refer to Fastener Notice .

Tighten:  2 N.m (18 lb in)
2 Outer Seat Cushion Cover Assembly
