Seat Cushion Inner Trim Panel Replacement

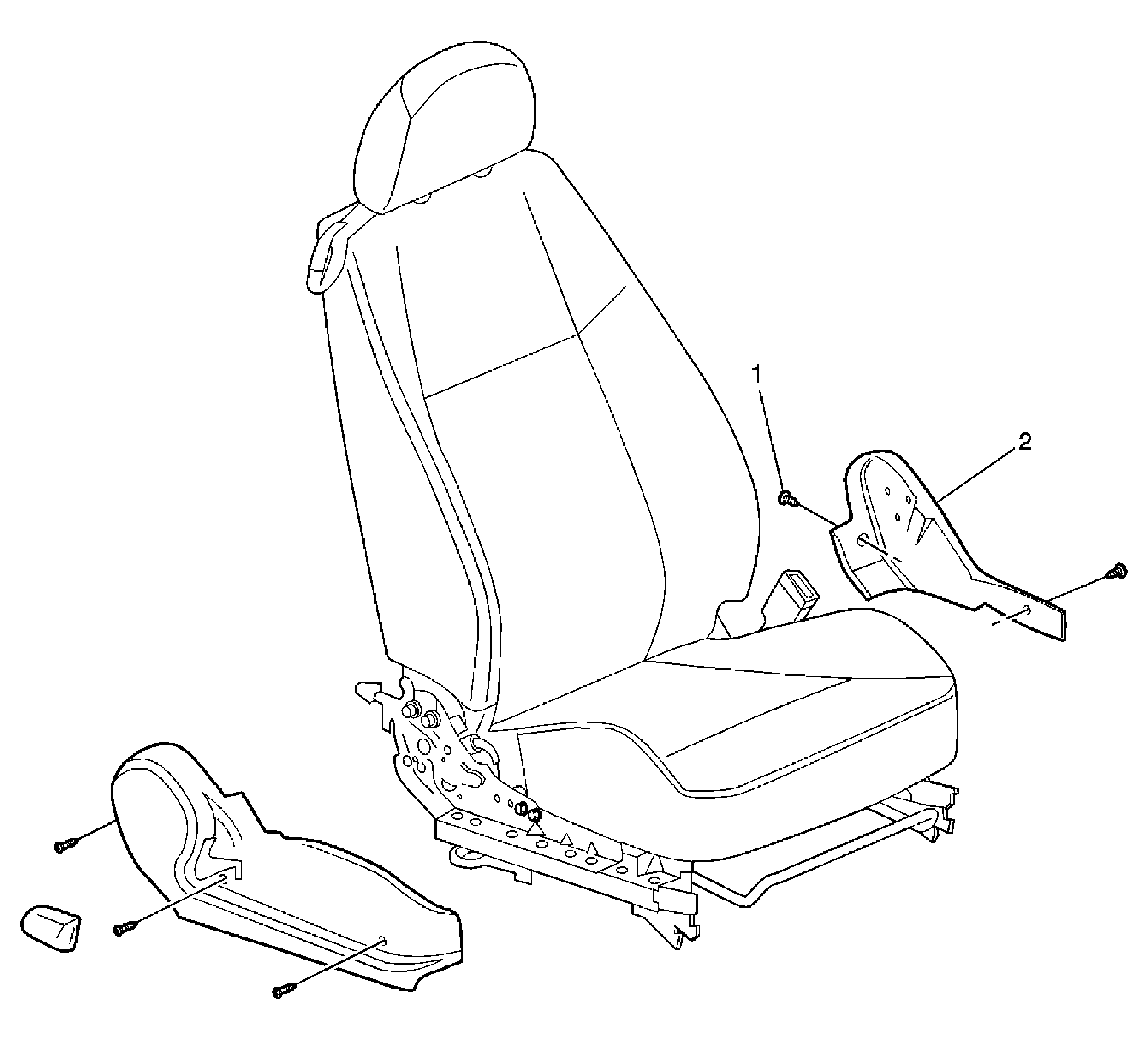

Fig 1: Identifying Seat Cushion Inner Trim Panel
GM1551130Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inner Seat Cushion Cover Assembly Screw (Qty: 2)
NOTE: Refer to Fastener Notice .

Tighten:  2 N.m (18 lb in)
2 Inner Seat Cushion Cover Assembly
