Engine Stand Setting: Setting
WARNING: This page is about a different variant/trim than selected.
NOTE:
Explained here is how to disassemble with engine stand supporting transmission surface. When using a different type of engine stand, note the difference in the steps, etc.
- Remove the engine assembly from the vehicle. Refer to Removal and Installation .
- Remove crankshaft pulley. Refer to Removal and Installation .
- Remove the parts that may restrict installation of engine to a widely used engine stand.
- Drive plate: Refer to Exploded View .
- Lift the engine with hoist to install it onto the widely used engine stand.CAUTION: Use an engine stand that has a load capacity [240 kg (529 lb) or more] large enough for supporting the engine weight.
- If the load capacity of the stand is not adequate, remove the following parts beforehand to reduce the potential risk of overturning the stand.
- Remove intake manifold. Refer to Exploded View .
- Remove fuel injector and fuel tube assembly. Refer to Exploded View .
- Remove ignition coil. Refer to Exploded View .
- Remove rocker cover. Refer to Exploded View .
- Remove exhaust manifold. Refer to Exploded View .

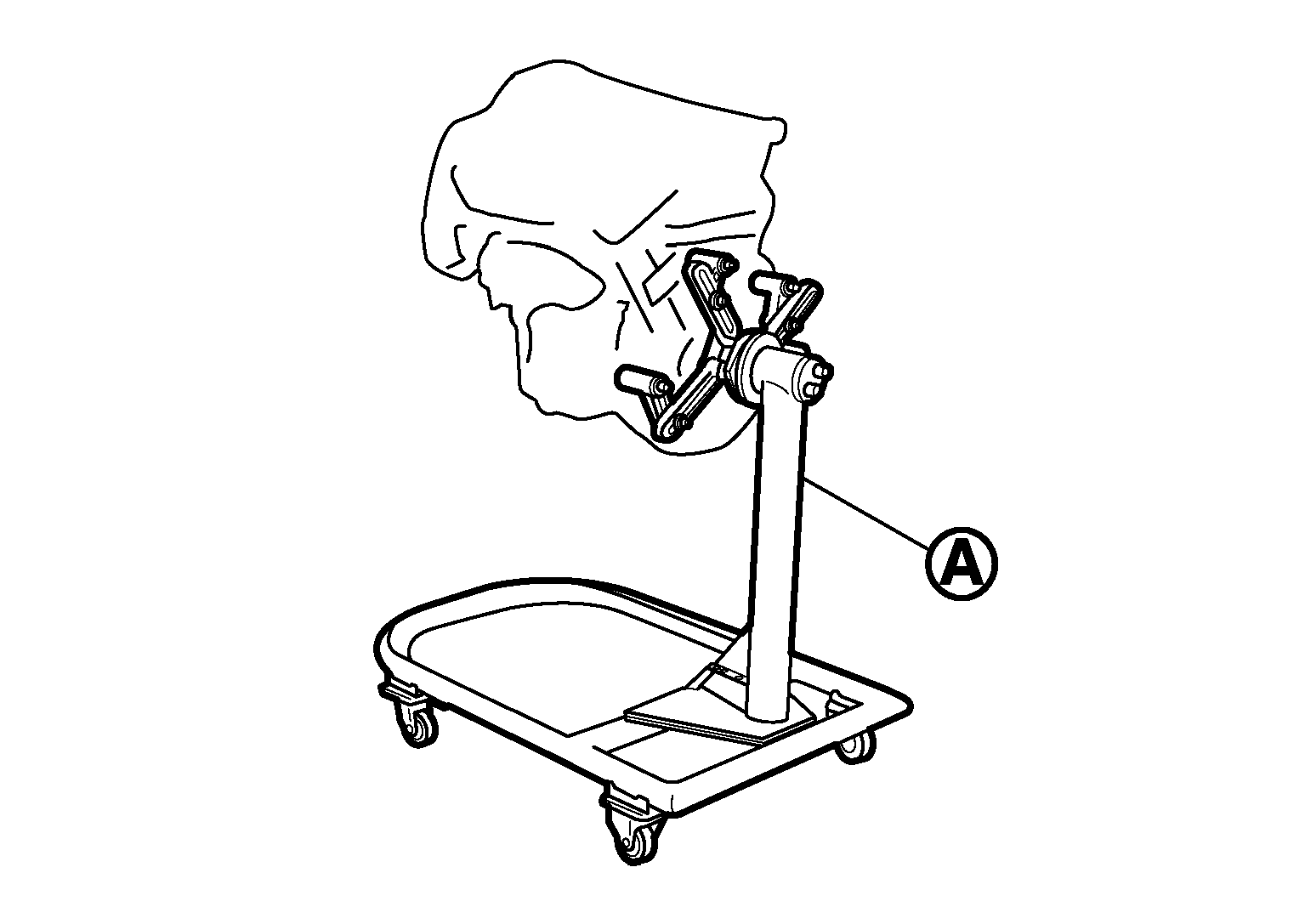

- Other removable brackets.NOTE: The figure shows an example of widely used engine stand (A) that can hold mating surface of transmission with drive plate removed.CAUTION: Before removing the hanging chains, check the engine stand is stable and there is no risk of overturning.
- If the load capacity of the stand is not adequate, remove the following parts beforehand to reduce the potential risk of overturning the stand.
- Drain engine oil. Refer to Draining .
- Drain engine coolant by removing water drain plug (3) from cylinder block as shown in the figure.
(1)
: Washer
(2)
: Plug (engine coolant)
(4)
: Plug (engine oil)
(5)
: Washer
: Engine front
