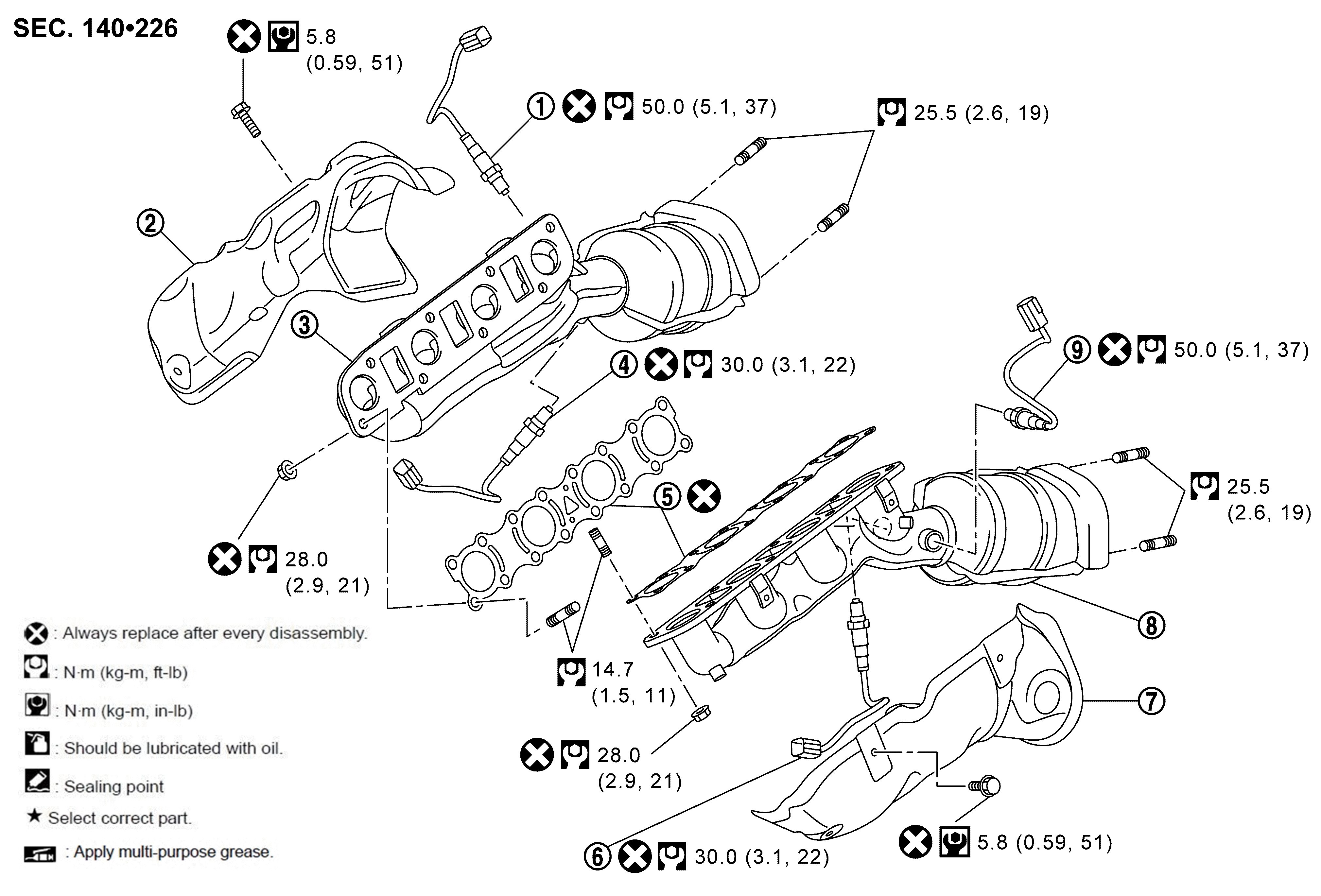

Exploded View
WARNING: This page is about a different variant/trim than selected.
|
1. |
Air fuel ratio sensor 1 (bank 2) |
2. |
Exhaust manifold cover (bank 2) |
3. |
Exhaust manifold and three way catalyst (bank 2) |
|
4. |
Exhaust temperature sensor (bank 2) |
5. |
Gasket |
6. |
Exhaust temperature sensor (bank 1) |
|
7. |
Exhaust manifold cover (bank 1) |
8. |
Exhaust manifold and three way catalyst (bank 1) |
9. |
Air fuel ratio sensor 1 (bank 1) |
