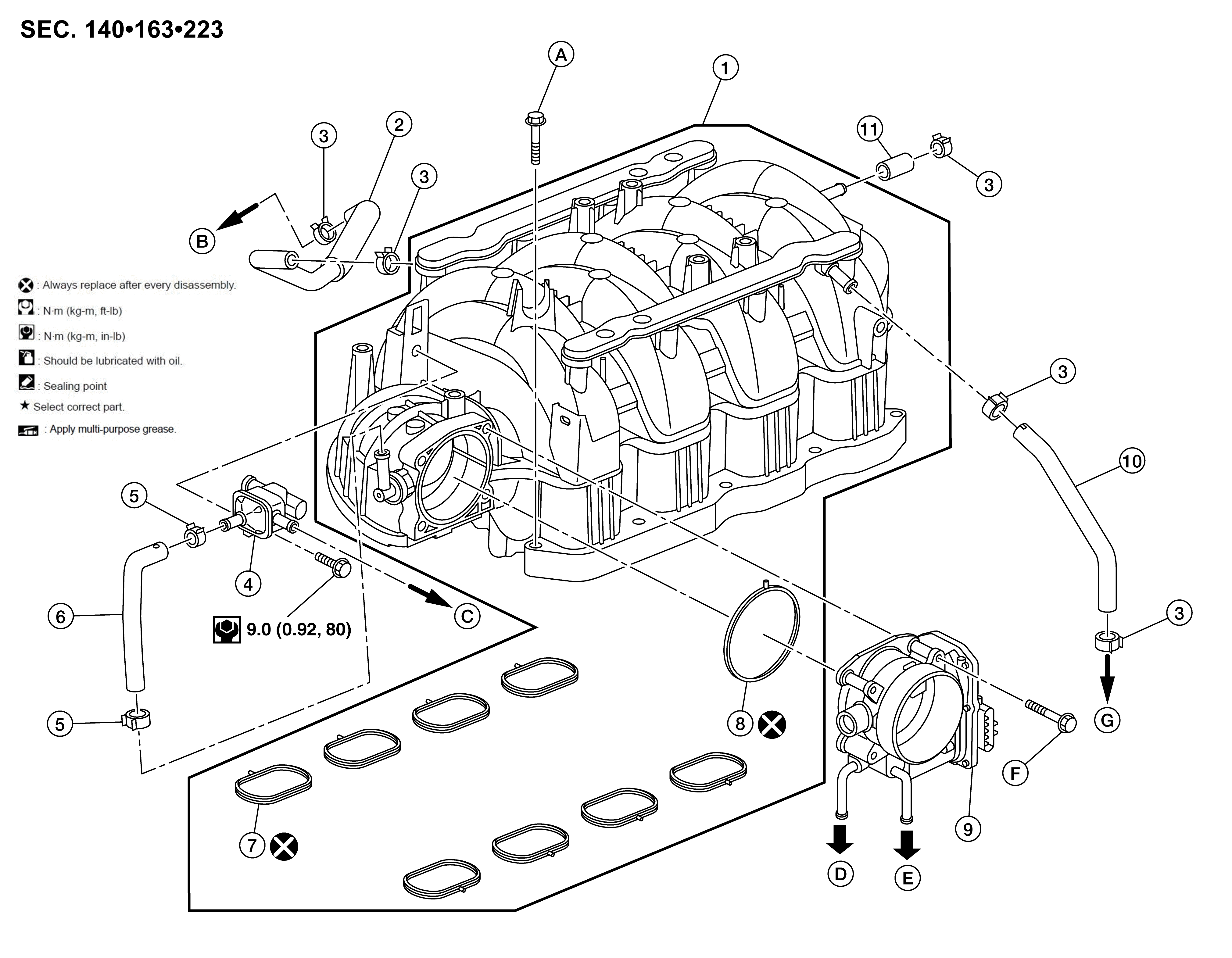

Exploded View
WARNING: This page is about a different variant/trim than selected.
|
1. |
Intake manifold |
2. |
PCV hose |
3. |
Clamp |
|
4. |
EVAP canister purge control solenoid valve |
5. |
Clamp |
6. |
EVAP hose |
|
7. |
Intake manifold gasket |
8. |
Electronic throttle control actuator gasket |
9. |
Electric throttle control actuator |
|
10. |
PCV hose |
11. |
Cap |
A. |
Refer to INSTALLATION |
|
B. |
To rocker cover (bank 2). Refer to Exploded View . |
C. |
To centralized under-floor piping. Refer to Removal and Installation . |
D. |
To multi-way control valve. Refer to Exploded View . |
|
E. |
To water suction pipe. Refer to Exploded View . |
F. |
Refer to INSTALLATION |
G. |
To rocker cover (bank 1). Refer to Exploded View . |
