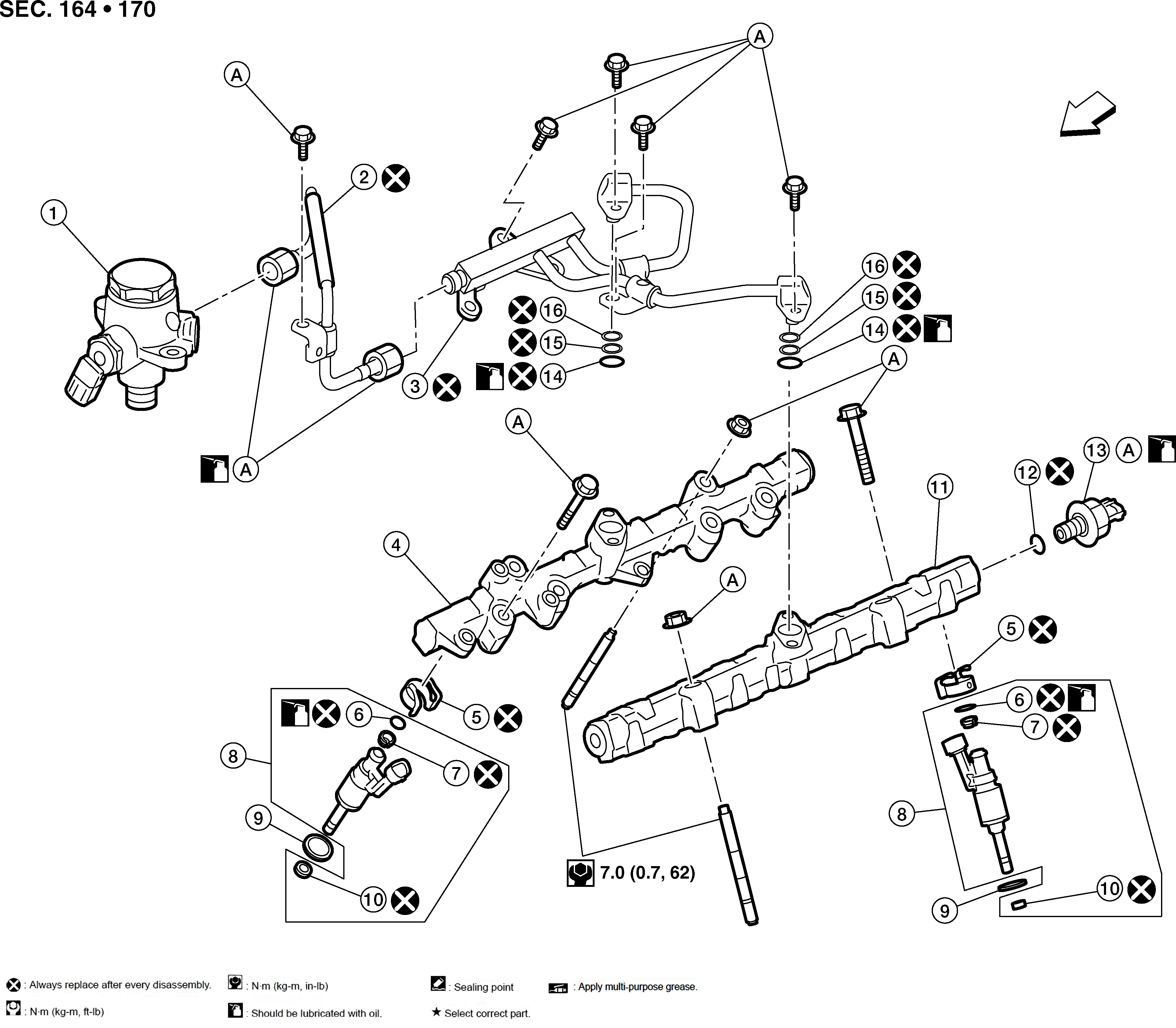

Exploded View
WARNING: This page is about a different variant/trim than selected.
|
1. |
High pressure fuel pump |
2. |
Fuel feed tube (pump side) |
3. |
Fuel feed tube (bank side) |
|
4. |
Fuel rail (bank 2) |
5. |
Injector holder |
6. |
O-ring (blue) |
|
7. |
Backup ring |
8. |
Fuel injector |
9. |
Seal ring |
|
10. |
Insulator |
11. |
Fuel rail (bank 1) |
12. |
Gasket |
|
13. |
Fuel rail pressure sensor |
14. |
O-ring (black) |
15. |
Backup ring (brown) |
|
16. |
Backup ring (white) |
A. |
Refer to INSTALLATION . |
|
Front |
CAUTION:
- Do not remove or disassemble parts unless instructed as shown in the figure.
- Be sure to follow the tightening instruction to avoid fuel leaks.
NOTE:
Replace both fuel feed tube (pump side) and fuel feed tube (bank side) simultaneously.
