Component Parts Location

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

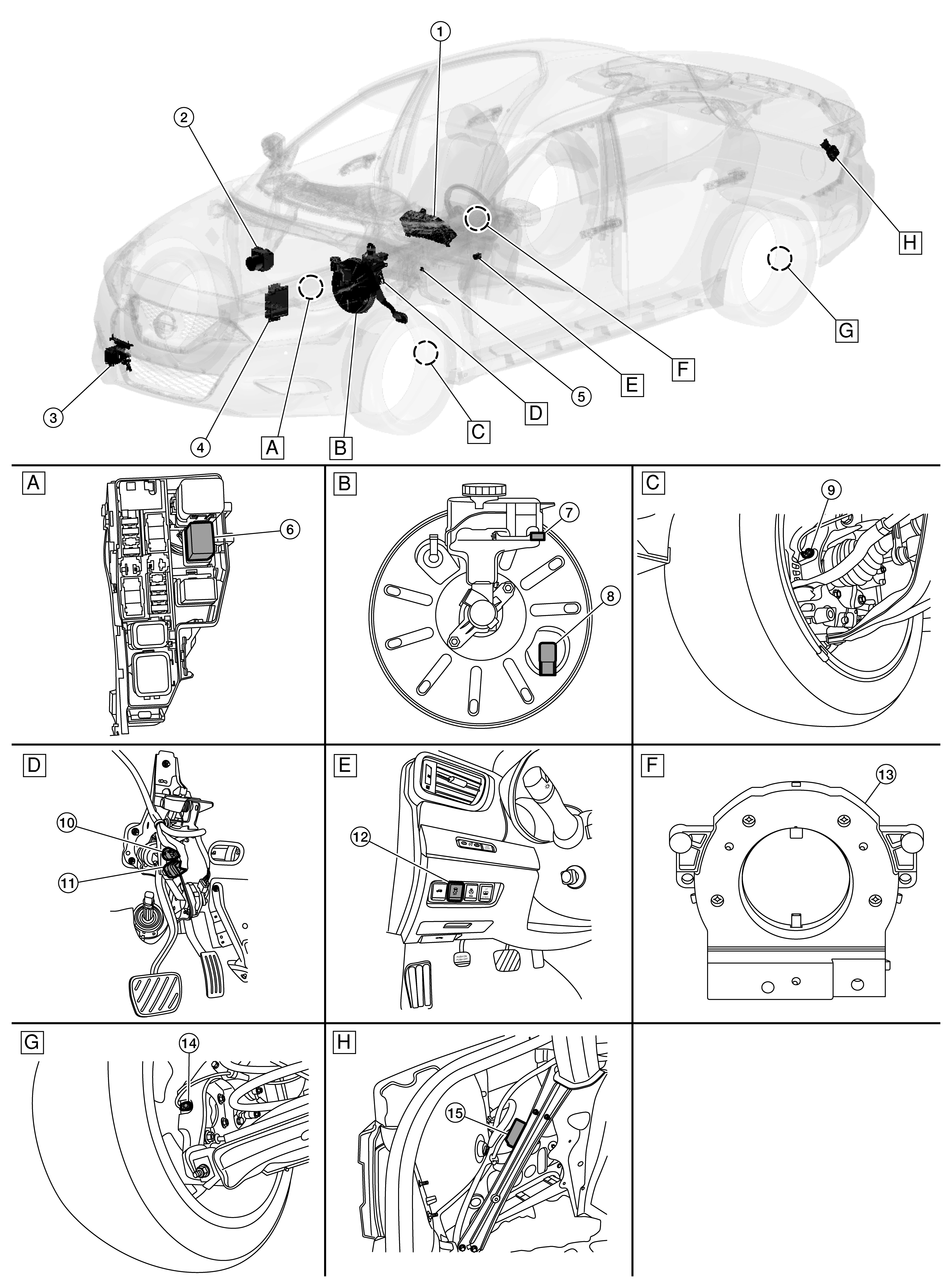

A.	Engine room (LH)	B.	View with brake booster assembly removed	C.	Left front wheel area
D.	Brake pedal area	E.	Left side of instrument panel	F.	View of steering angle sensor removed
G.	Left rear wheel area	H.	Left side of luggage compartment

No.	Component	Description
1.	Combination meter	Performs the following operations using the signals received from the ADAS control unit via the CAN communication: Displays the AEB system operation status using the meter display signal Illuminates the AEB warning lamp using the AEB warning lamp signal Refer to Component Parts Location for detailed installation location.
2.	ABS actuator and electric unit (control unit)	ABS actuator and electric unit (control unit) transmits the vehicle speed signal (wheel speed), stop lamp signal and VDC/TCS/ABS system operation condition to ADAS control unit via CAN communication. ABS actuator and electric unit (control unit) controls the brake, based on a brake fluid pressure control signal received from ADAS control unit via CAN communication. Refer to Exploded View for detailed installation location.
3.	Distance sensor (ICC sensor)	Refer to Distance Sensor (ICC Sensor) .
4.	TCM	TCM transmits the signal related to CVT control to ADAS control unit via CAN communication. Refer to Component Parts Location for detailed installation location.
5.	Parking brake switch	Refer to Parking Brake Switch .
6.	ICC brake hold relay	Refer to ICC Brake Hold Relay .
7.	Brake fluid level switch	Refer to Brake Fluid Level Switch .
8.	Vacuum sensor	Refer to Vacuum Sensor .
9.	Front LH wheel sensor	Refer to Wheel Sensor and Sensor Rotor .
10.	Brake pedal position switch	Refer to Brake Pedal Position Switch / Stop Lamp Switch .
11.	Stop lamp switch	Refer to Brake Pedal Position Switch / Stop Lamp Switch .
12.	VDC OFF switch	Refer to VDC OFF Switch .
13.	Steering angle sensor	Refer to Steering Angle Sensor .
14.	Rear LH wheel sensor	Refer to Wheel Sensor and Sensor Rotor .
15.	ADAS control unit	Refer to ADAS Control Unit . Refer to Component Parts Location for detailed installation location.
