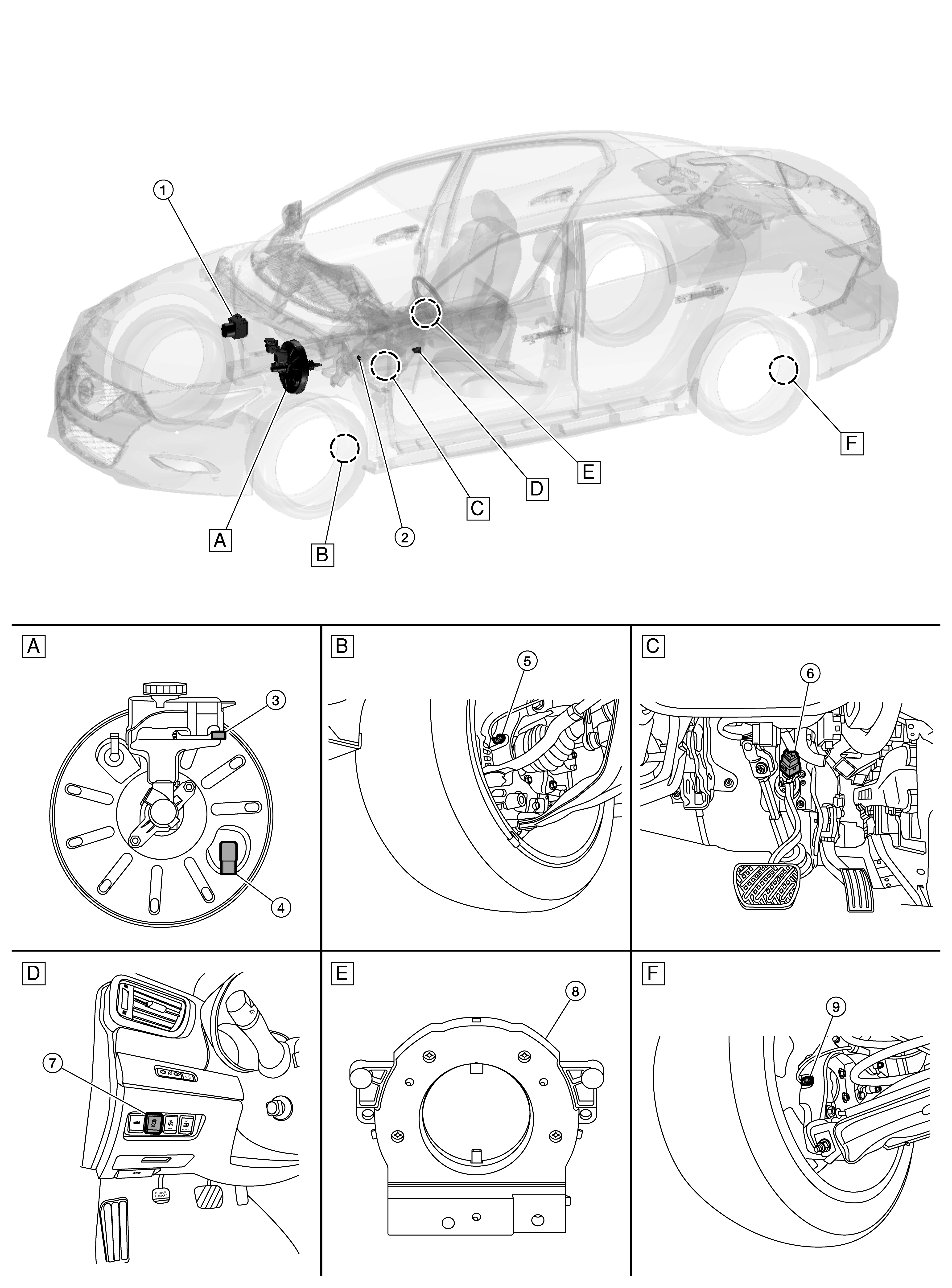

Component Parts Location
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
|
A. |
View with brake booster assembly removed |
B. |
Left front wheel area |
C. |
Brake pedal area |
|
D. |
Left side of instrument panel |
E. |
View of steering angle sensor removed |
F. |
Left rear wheel area |
|
No. |
Component parts |
Function |
|
1. |
ABS actuator and electric unit (control unit) |
|
|
2. |
Parking brake switch |
|
|
3. |
Brake fluid level switch |
|
|
4. |
Vacuum sensor |
|
|
5. |
Front LH wheel sensor |
|
|
6. |
Stop lamp switch |
|
|
7. |
VDC OFF switch |
|
|
8. |
Steering angle sensor |
|
|
9. |
Rear LH wheel sensor |
