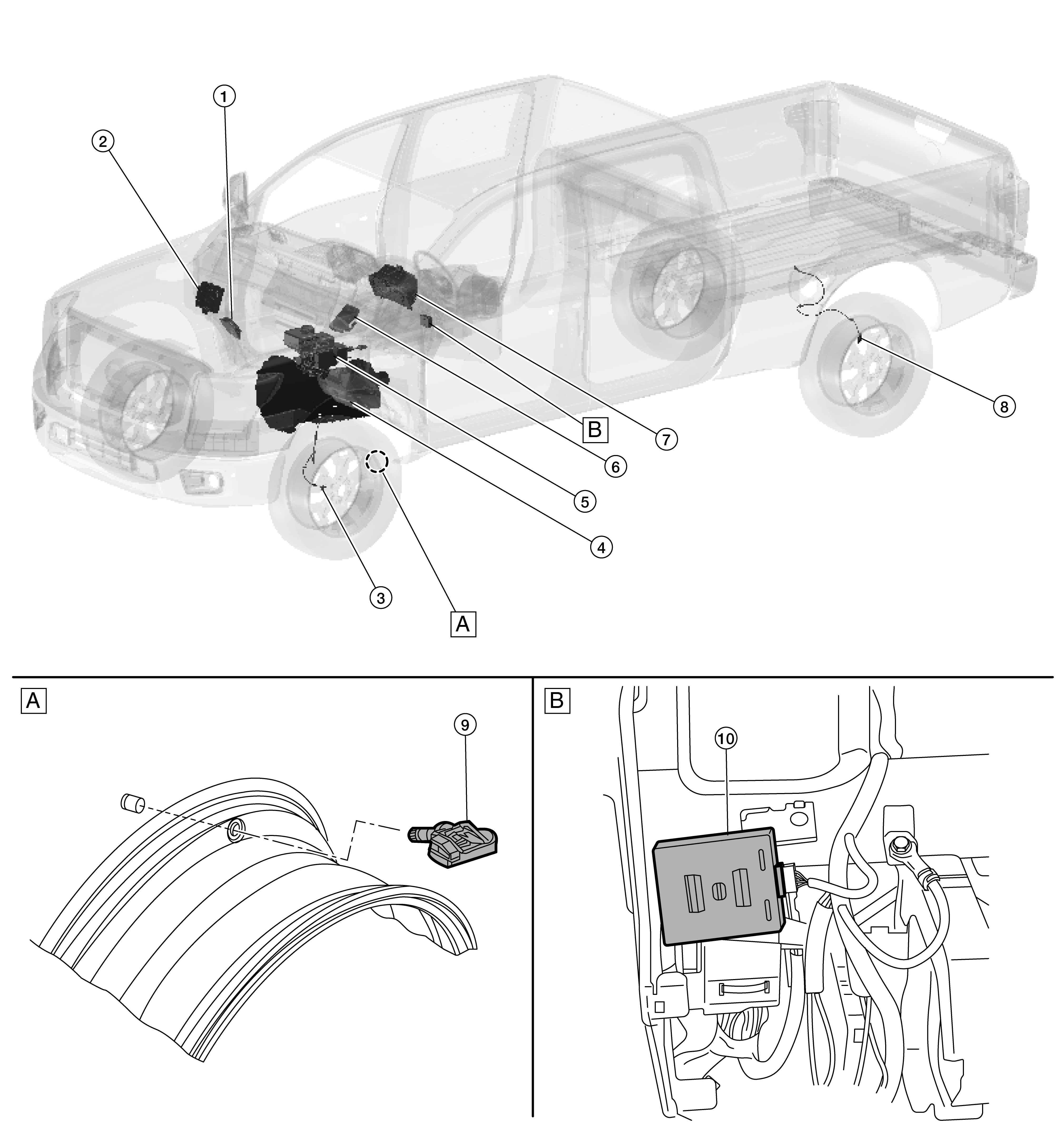

Component Parts Location

A.

Wheel (LF shown, others similar)

B.

Behind LH side of instrument panel

No.

Component parts

Function

1.

TCM (RE6R01A)

Mainly transmits the P position signal to low tire pressure warning control unit via CAN communication.

Refer to Component Parts Location for detailed installation location.

2.

IPDM E/R

Mainly receives horn operation signal from low tire pressure warning control unit via CAN communication.

Refer to Component Parts Location for detailed installation location.

3.

Front wheel sensor LH (RH similar)

Refer to Component Parts Location for detailed installation location.

4.

TCM (RE7R01B)

Mainly transmits the P position signal to low tire pressure warning control unit via CAN communication.

Refer to Component Parts Location for detailed installation location.

5.

ABS actuator and electric unit (control unit)

Mainly transmits the wheel speed signal to low tire pressure warning control unit via CAN communication.

Refer to Component Parts Location for detailed installation location.

6.

BCM

Mainly receives the hazard lamp operation signal from low tire pressure warning control unit via CAN communication.

Refer to Component Parts Location for detailed installation location.

7.

Combination meter

The combination meter receives tire pressure status from the low tire pressure waning control unit via CAN communication. The combination meter will display the low tire pressure warning lamp when a low tire pressure or system malfunction is detected by the low tire pressure warning control unit.

Refer to Component Parts Location (type A) or Component Parts Location (type B) for detailed installation location.

8.

Rear wheel sensor LH (RH similar)

Refer to Component Parts Location for detailed installation location.

9.

Tire pressure sensor

Refer to Tire Pressure Sensor .

10.

Low tire pressure warning control unit

Refer to Low Tire Pressure Warning Control Unit .
