Tire Pressure Sensor
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

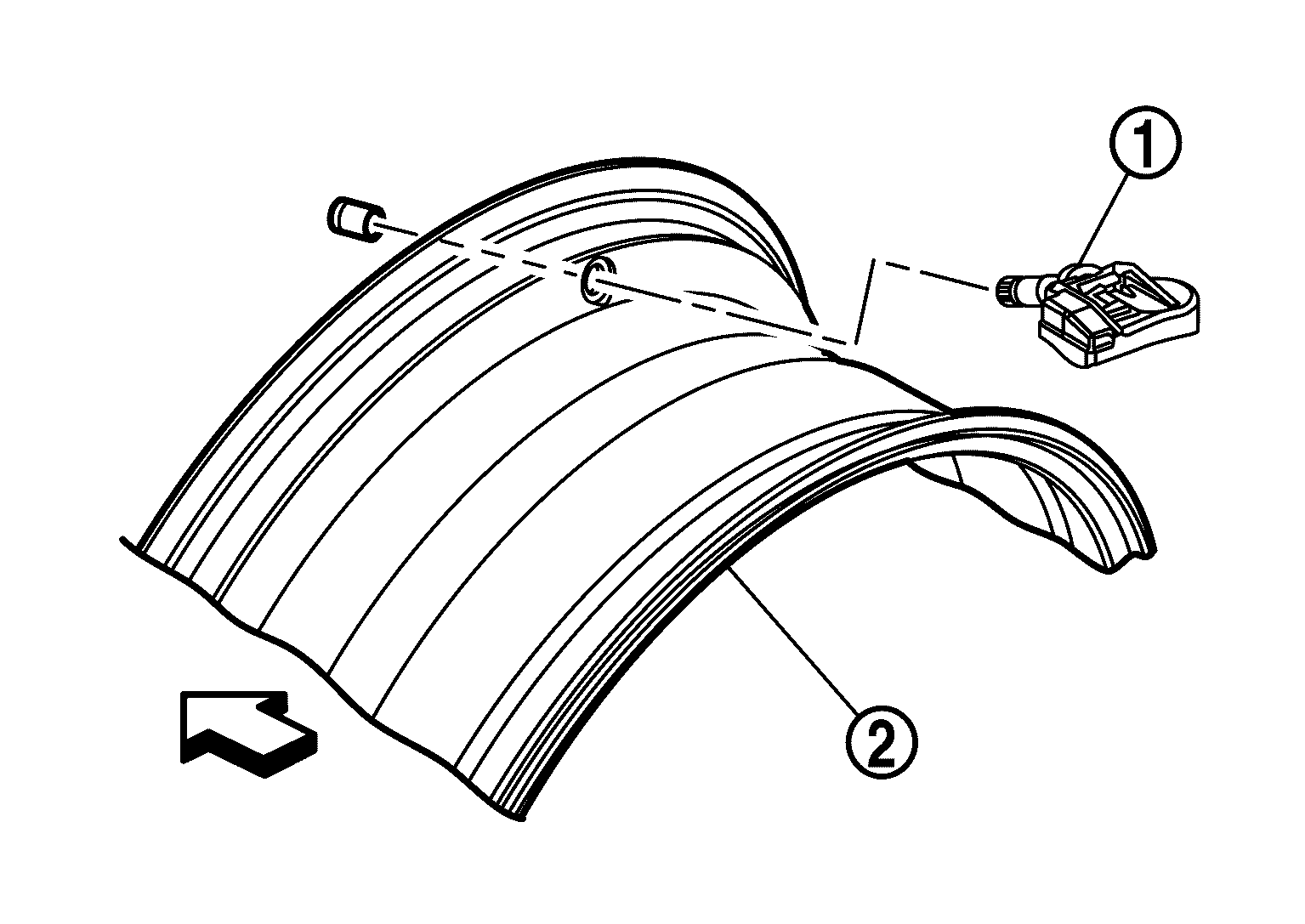

The tire pressure sensor (1) integrated with the valve is installed in each wheel (2), and transmits the detected tire pressure and temperature signal in the form of the radio wave. The radio signal is received by the low tire pressure warning control unit (tire pressure receiver).
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
|
: Outside
|
