Component Location

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

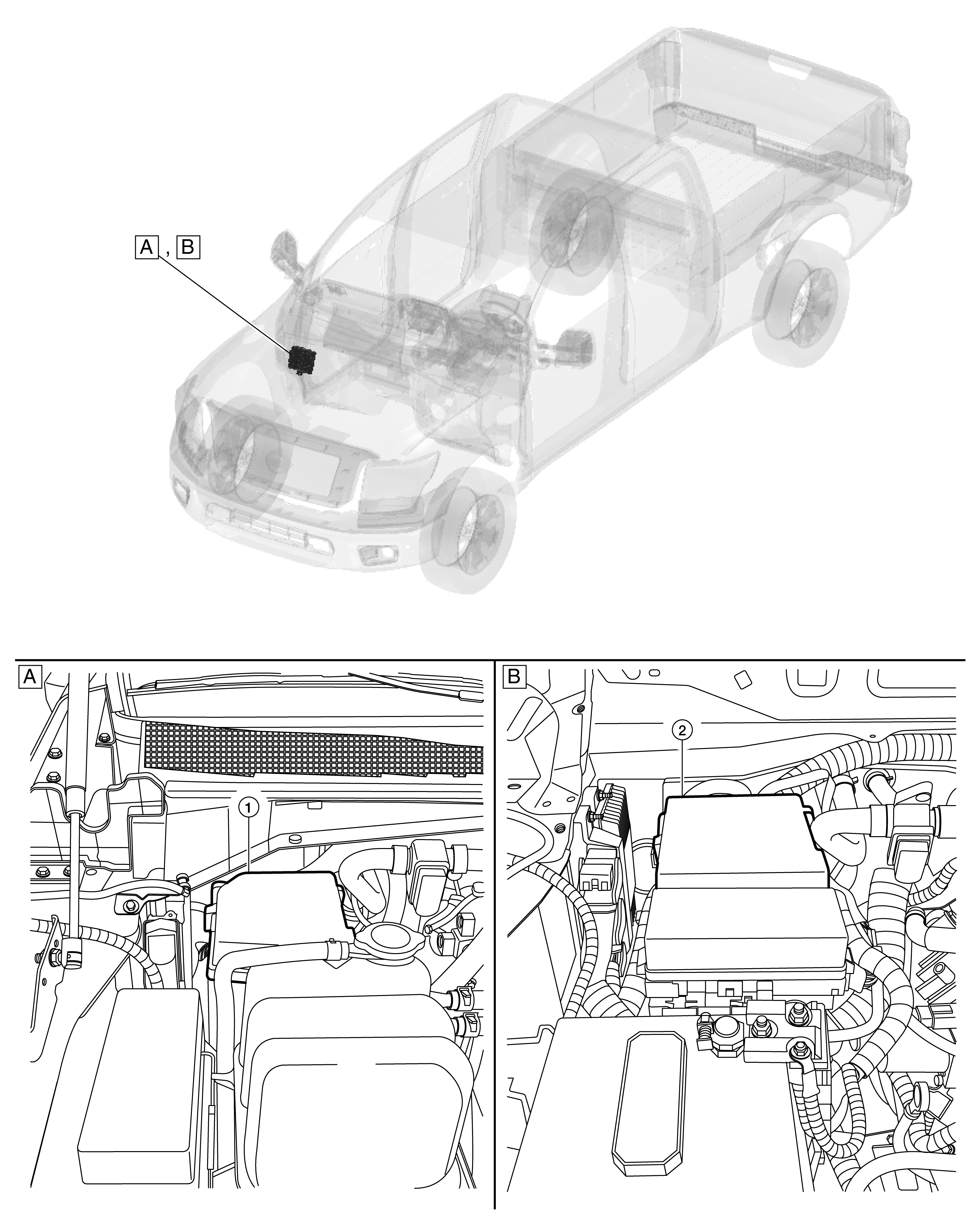

GNSAWMIA1842Z-842Courtesy of NISSAN NORTH AMERICA, INC.

A

Engine room right side rear (Cummins 5.0L)

B

Engine room right side rear (VK56VD)

1.

IPDM E/R

2.

IPDM E/R
