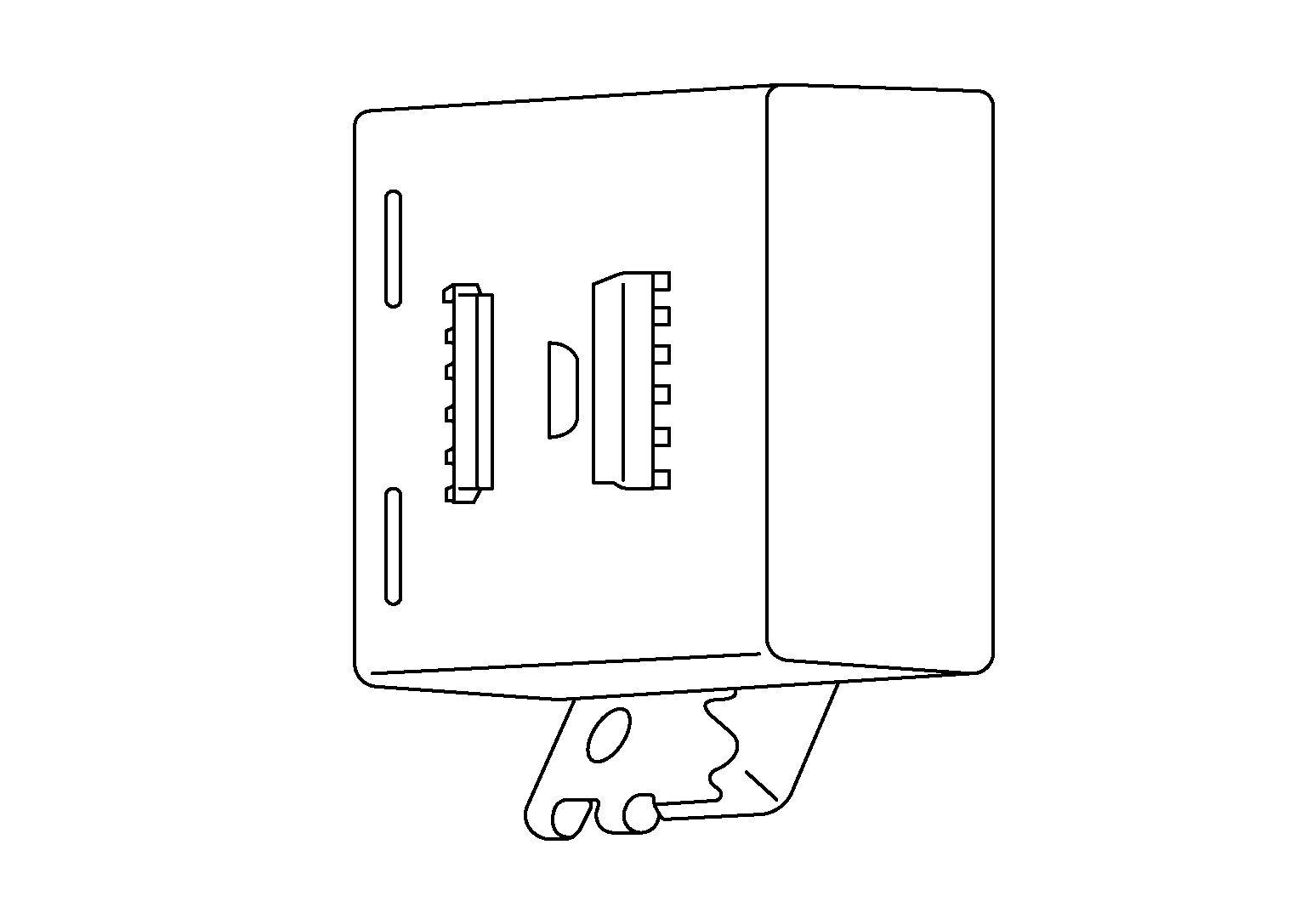

Low Tire Pressure Warning Control Unit
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
- Tire pressure receiver is integrated in low tire pressure warning control unit.
- The tire pressure receiver receives the tire pressure signal transmitted by the tire pressure sensor in each wheel.
- The low tire pressure warning control unit reads the tire pressure signal received by tire pressure receiver, and controls the low tire pressure warning lamp operations. It also has a judgment function to detect a system malfunction.
