Component Location

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

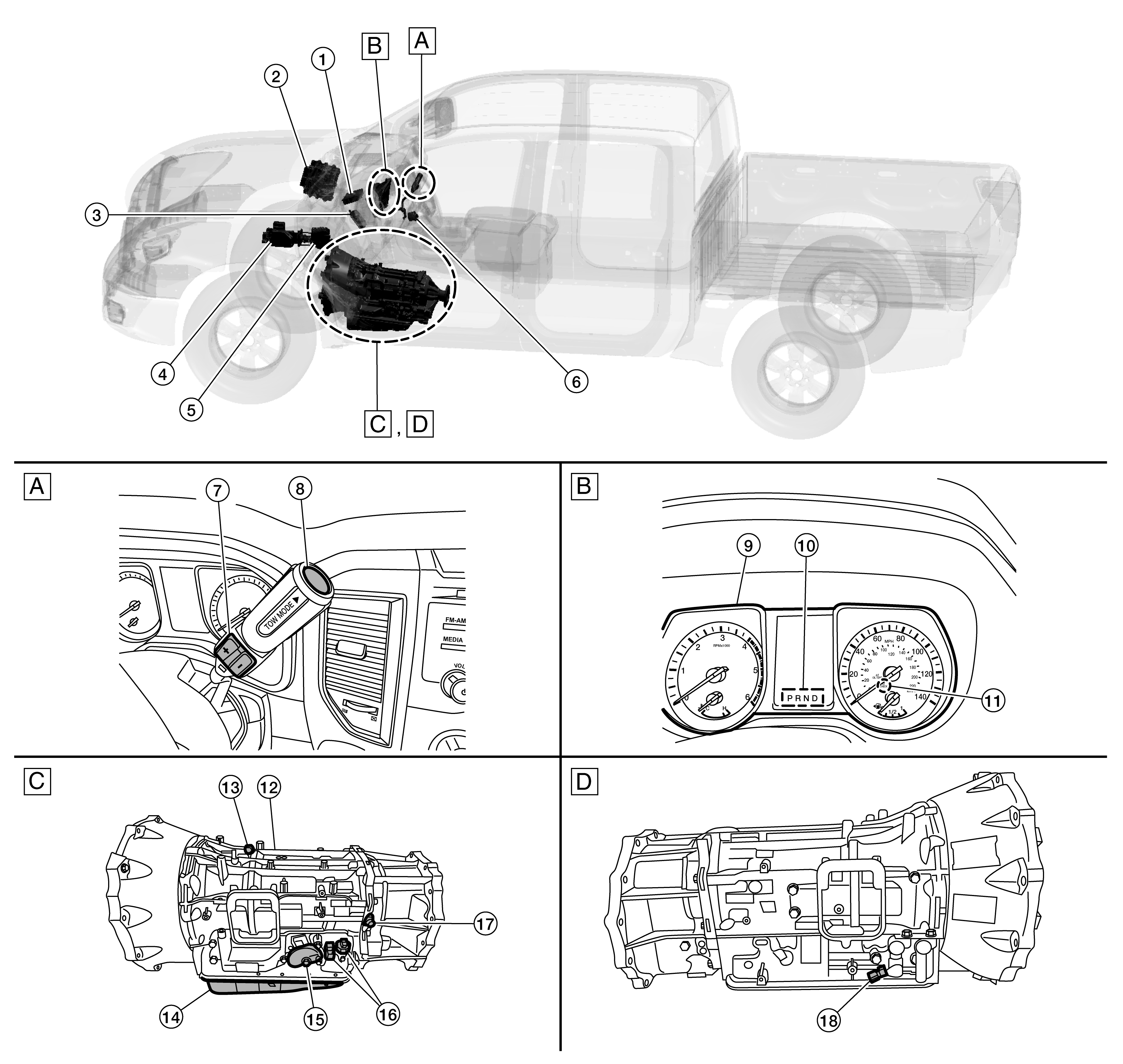

GNSDB115428Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Shift lever

SYMBOL

Combination meter

SYMBOL

Transmission assembly

SYMBOL

Transmission assembly

No.

Component

Function

SYMBOL

BCM

Mainly transmits the following signal to TCM via CAN communication.

  • Stop lamp switch signal

Refer to Component Location for detailed installation location.

SYMBOL

ECM

Mainly transmits the following signal to TCM via CAN communication.

  • Engine speed signal
  • Engine torque signal
  • Accelerator pedal position signal

Mainly receives the following signals from TCM via CAN communication.

  • Malfunction indicator lamp signal

Refer to Reference Value for detailed installation location.

SYMBOL

TCM

TCM

SYMBOL

ABS actuator and electric unit (control unit)

Refer to Component Location for detailed installation location.

SYMBOL

Transfer control unit

Mainly transmits the following signal to TCM via CAN communication.

  • 4WD mode signal

Refer to Component Location (without axle disconnect device) or Component Location (with axle disconnect device) for detailed installation location.

SYMBOL

4WD mode switch

4WD Shift Switch (without axle disconnect device)

4WD Shift Switch (with axle disconnect device)

SYMBOL

Manual mode switch

Manual Mode Switch

SYMBOL

Tow mode switch

Tow Mode Switch

SYMBOL

Combination meter

Mainly transmits the following signal to TCM via CAN communication.

  • Tow mode switch signal
  • Manual mode (shift up) signal
  • Manual mode (shift down) signal

Mainly receives the following signals from TCM via CAN communication.

  • AT CHECK indicator lamp signal

Refer to Component Location (TYPE A), Component Location (TYPE B) for detailed installation location.

SYMBOL

Shift position indicator

Shift Position Indicator

SYMBOL

AT CHECK indicator lamp

AT CHECK Indicator Lamp

SYMBOL

Transmission assembly

-

SYMBOL

Input speed sensor

Input Speed Sensor

SYMBOL

Control valve

C1 clutch solenoid valve*

C1 Clutch Solenoid Valve

C2 clutch solenoid valve*

C2 Clutch Solenoid Valve

C3 clutch solenoid valve*

C3 Clutch Solenoid Valve

B1 brake solenoid valve*

B1 Brake Solenoid Valve

B2 brake solenoid valve*

B2 Brake Solenoid Valve

Line pressure solenoid valve*

Line Pressure Solenoid Valve

Torque converter clutch solenoid valve*

Torque Converter Clutch Solenoid Valve

Fail-safe solenoid valve*

Fail-safe Solenoid Valve

Oil pressure switch*

Oil Pressure Switch

A/T fluid temperature sensor 2**

A/T Fluid Temperature Sensor 2

SYMBOL

Transmission range switch

Transmission Range Switch

SYMBOL

A/T assembly connector

-

SYMBOL

Output speed sensor

Output Speed Sensor

SYMBOL

A/T fluid temperature sensor 1

A/T Fluid Temperature Sensor 1

*: These components are included in control valve.

**: The A/T fluid temperature sensor 2 is part of the A/T assembly connector (12-pin).
